Ockelman sledge, 30 x 15 cm

19.680 - Ockelman Sledge

  • Made from AISI 316 stainless steel
  • Opening, L x H: 30 x 15 cm, located 3 cm above the sea bed

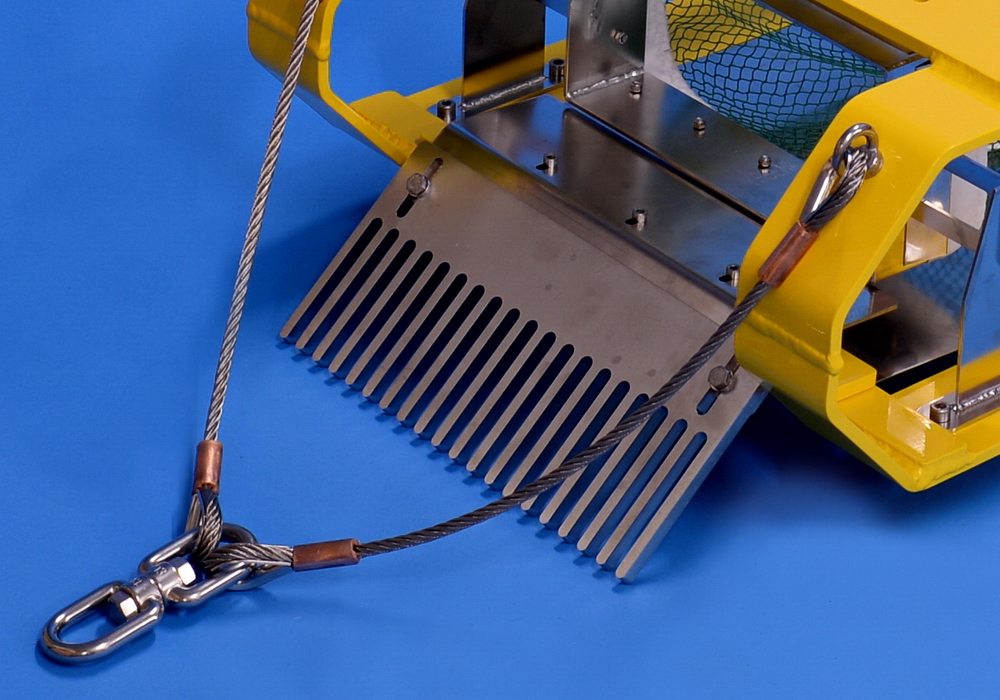

  • Adjustable shovel plate with a row of teeth
  • Net bag: Mesh size 1000 µm
  • Net bag, length: 100 cm
  • Protection for net bag: Steel plate
  • Dimensions: L x W x H: 154 x 57 x 25 cm
  • Weight: 25 kg

Front:
The net opening is located 3 cm above the sea bed

Mounting of the net bag:
A solid fastening for the net bag will ensure a simple replacement



Net bucket:

  • Sample cylinder made of POM and AISI 316 stainless steel
  • It has 3 windows, slightly offset, so you can easily pour out the content.
  • The windows are covered by a net, according to the
    mesh size of the plankton net.
  • The windows are protected by AISI 316 stainless steel
    net at the outer side (mesh size 10 mm)

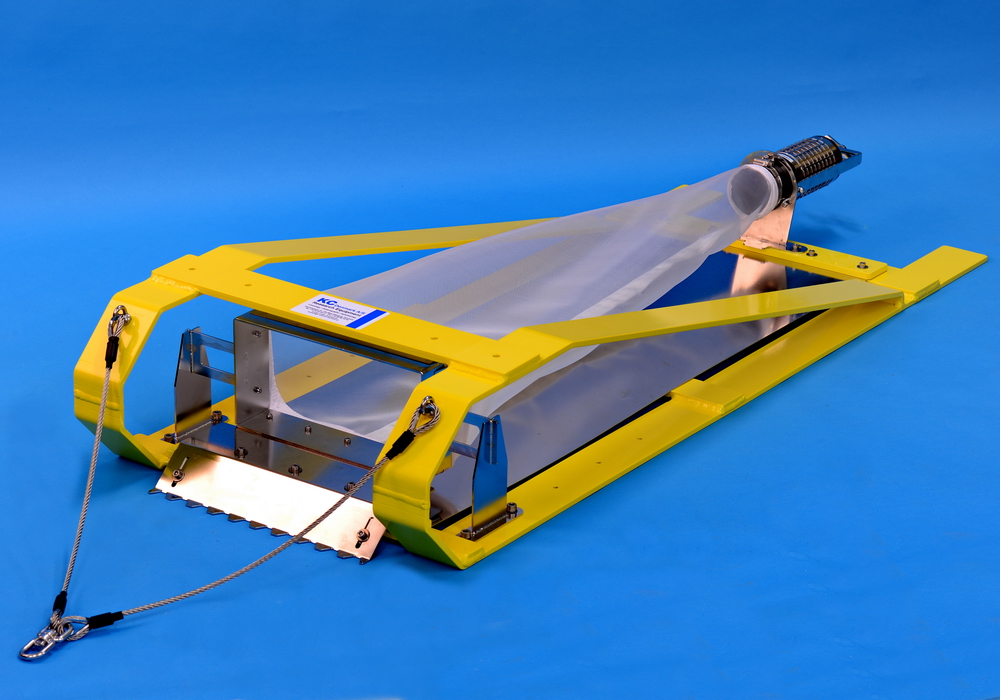

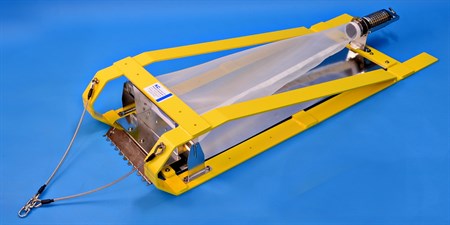

19.680 - Ockelman Sledge.

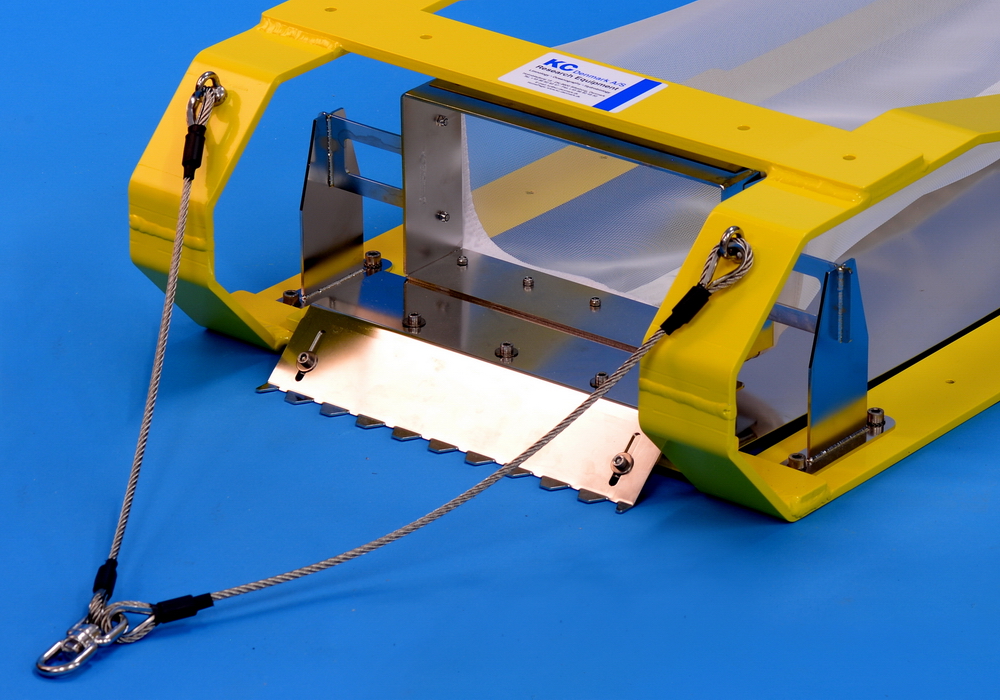

19.680 - Ockelman Sledge - front.

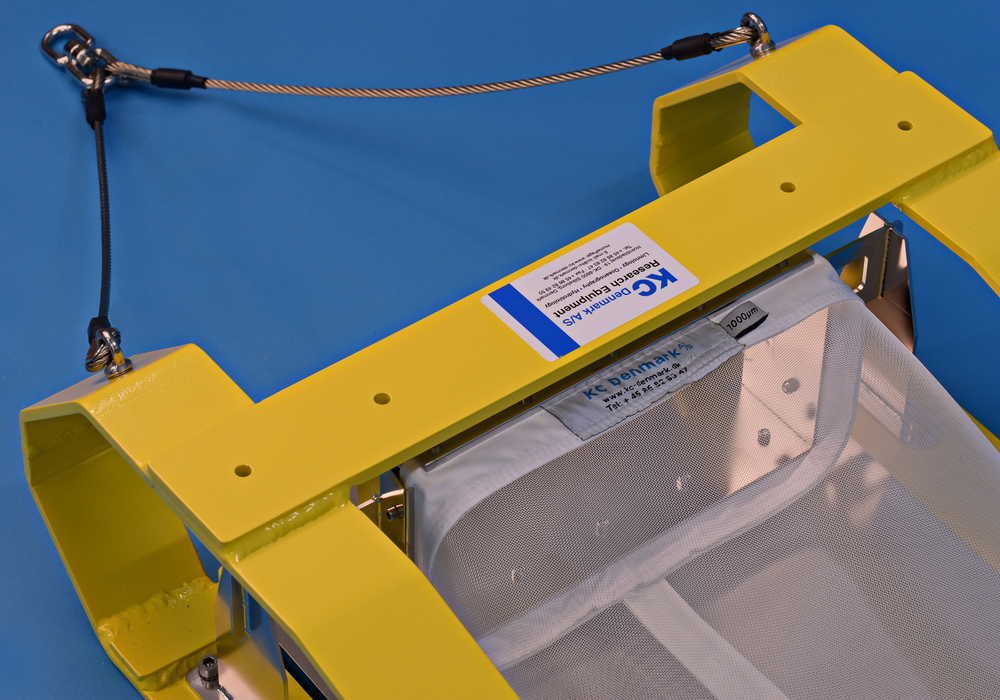

19.680 - Ockelman sledge, detail - front.

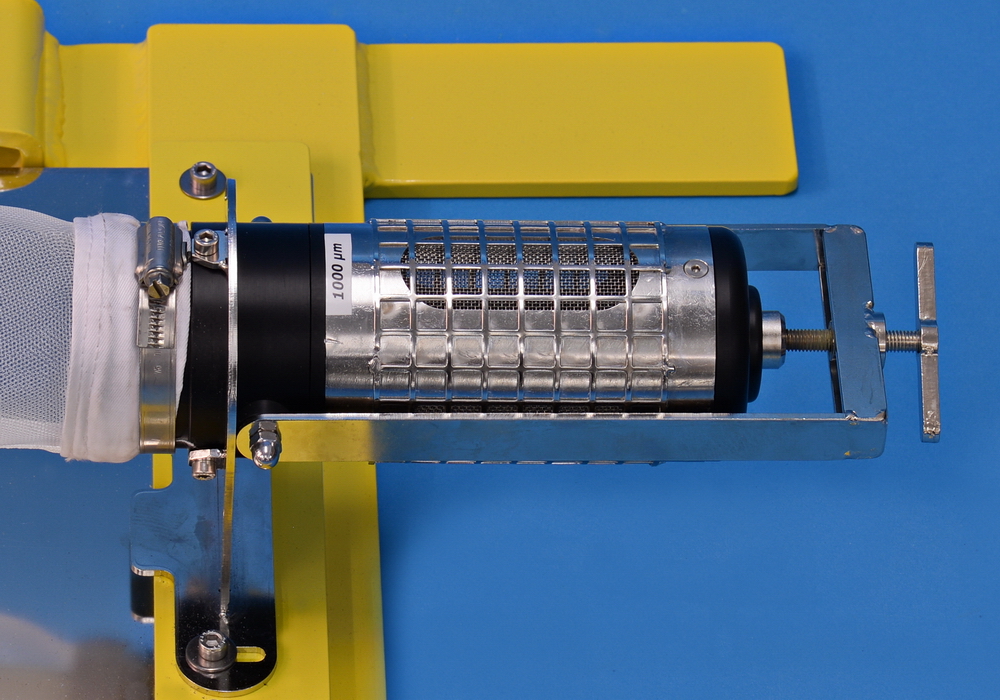

23.023 - Collecting bottle with quick release.


19.680 CAM - Complete camera option:

  • Color camera, extreme wide-angle
  • Optics: 0,1 lux, 120°
  • Video recorder, full HD 1080 x 1920, H264, 30 fps.,
    capacity up to 10 hours
  • USB interface
  • 2 LED lamps, light intensity 1900 Lumen/each
  • Adjustable brackets for lamp and camera
  • Approved for max. 500 m depth
  • Internal memory for recording video, up to 10 hours
  • Battery cylinder with Ni-MH battery and charger,
    cables with Subconn connectors
  • The system is fixed on top of the sledge
  • The housing is made of stainless steel, AISI 316 L (1.404)
  • Inclusive cables and charger
  • Finish: Electro polish
  • Weight incl. battery cylinder: 15 kg

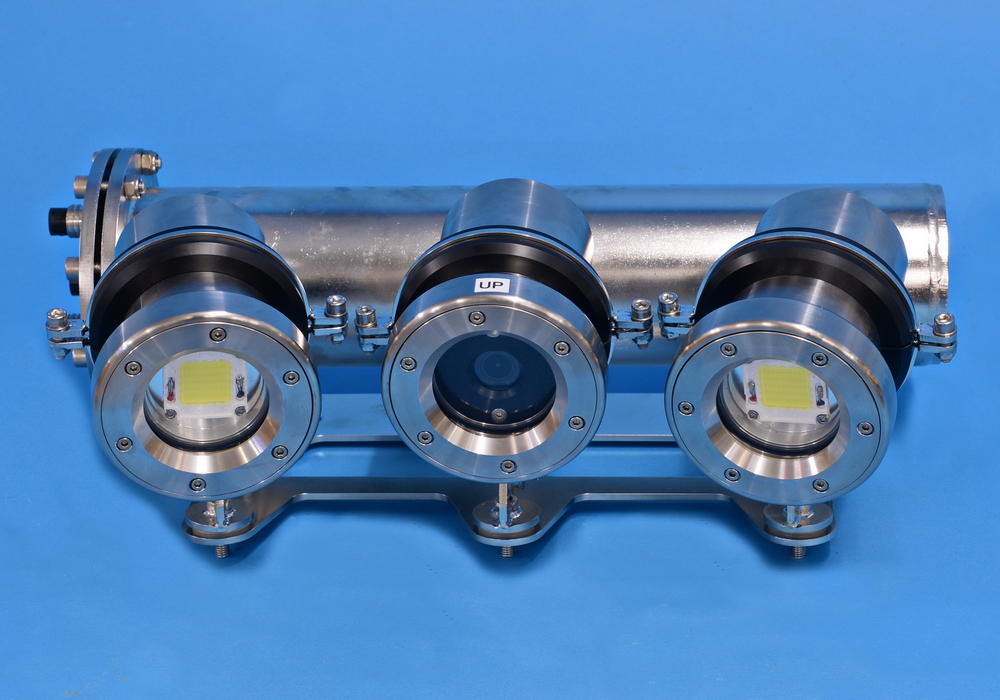

19.680 - Camera option.


19.680 CAM - Complete camera option.
