Plankton net Ø40 cm

23.010 - Plankton net, diameter 40 cm.

The upper part of the net is made of strong Beaver Nylon. Standard mounting with 3 pcs. of polyester line Ø5 mm. with bridle, length 60 cm.

The conical net bag with an upper diameter of 40 cm and a length of 100 cm is made of Monodur Nytal (Nylon) 20 to 500 µm, ordering no. 23.010 or ordering no. 23.011 for a range within 5-15 µm. Plankton nets are available in all types and sizes.

The sample can be removed through a valve at the bottom of the sample cylinder.

Sample cylinders:
The plankton net support various models of sample cylinders:

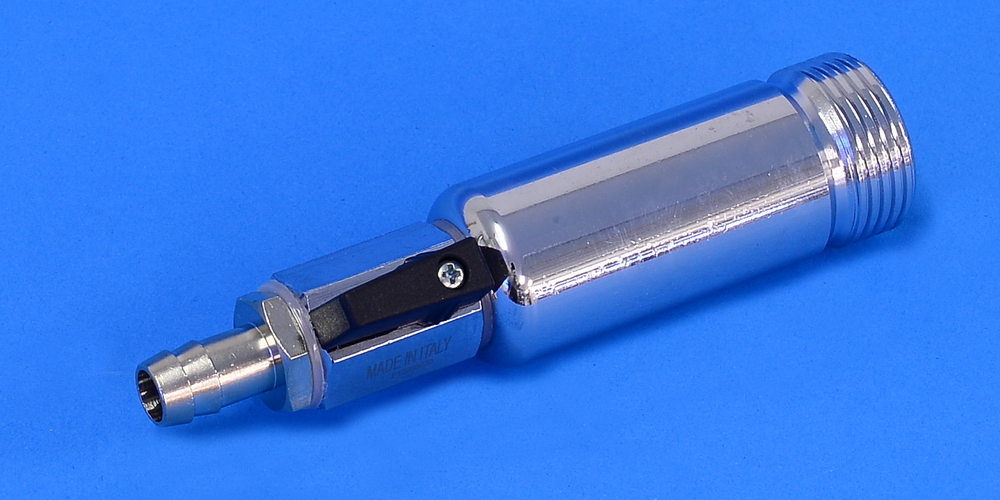

23.001:
As standard, the plankton net comes with this cylinder made of chromium-plated brass with a valve and a content of 35 ml.

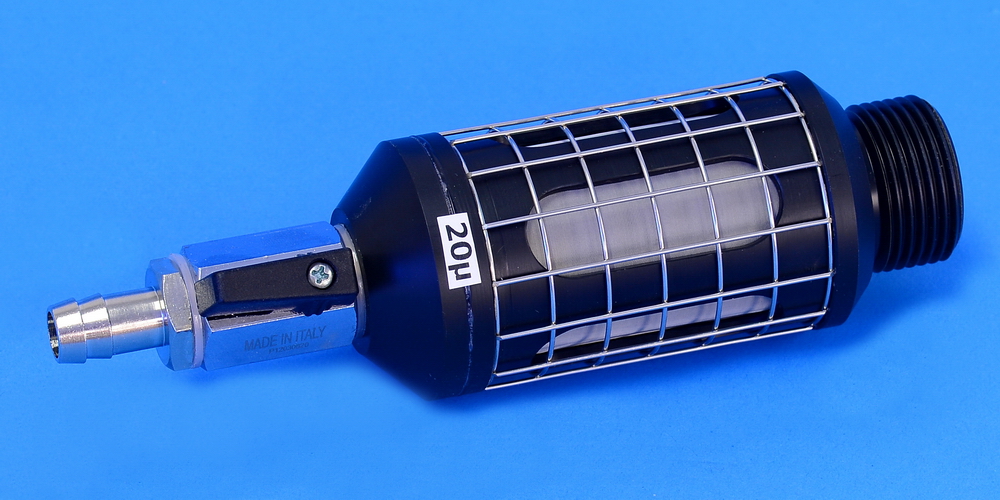

23.004:
A sample cylinder made of PVC, 5 windows covered by net, mesh size according to the plankton net, minimum mesh size of 20 µm. Protection net made of stainless steel. It has a content of 80 ml and a valve for emptying the cylinder.

23.951D:
A transparent collecting bottle with a valve and a content of 300 ml.

23.005 Adapter:
Allows using of blue and red cap glass bottles with GL45 thread.

Flow meter:
The net also supports a flow meter, either model 23.090 or 23.091 for determination of the sample volume; more details can be found here.



23.010 - Plankton net, diameter 40 cm.


23.001 - Cylinder with valve. Content 35 ml.


23.004 - Cylinder with valve. Content 80 ml.


23.951D - Transparent collecting bottle with valve, content 300 ml.


23.005 - Adapter for glass bottle.


23.006 - Carrying bag.

Description Ordering No.
Plankton net, O.D. 40 x 100 cm, available mesh size from 20 - 500 µm 23.010
Plankton net, O.D. 40 x 100 cm, available mesh size from 5 - 15 µm 23.011
Accessories/Spate parts
Sample cylinder with valve made of brass, chromium-plated, O.D/I.D. Ø32/25 mm. Weight 350 g. Content of bucket: 35 cm³. 23.001
Sample cylinder made of PVC, 5 windows covered by net, according to the plankton net, minimum mesh size af 20 µm, AISI 316 stainless steel. Valve made of brass, chromium-plated. Content of bucket: 80 cm³. 23.004
Protection carrying bag for small plankton net made of beaver nylon. Dimensions 55 x 55 cm. 23.006
