Ekman Bottom Grabs 225 cm2


The Ekman Bottom Corer is based on the Ekman design. The KC Ekman Bottom Corer is made of AISI 316 stainless steel .
Drop messenger is included (only model 12.000)

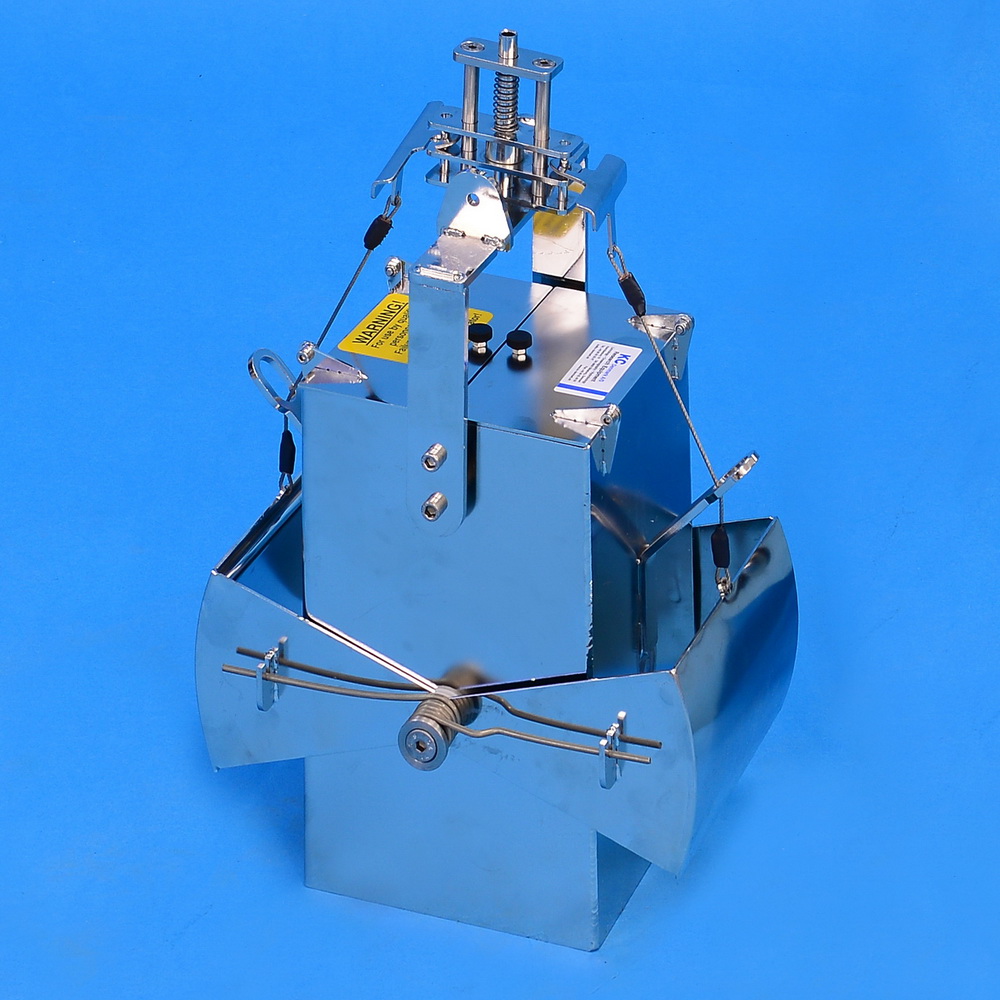

Ekman Bottom corer

  • Sample area: 225 cm²
  • Sample volume: 5 L
  • Drop messenger 500 g
  • AISI 316 stainless steel
  • Finish: Electro polish
  • Dimensions when loaded: 270 x 215 x 425 mm
  • Weight: 5,8 kg

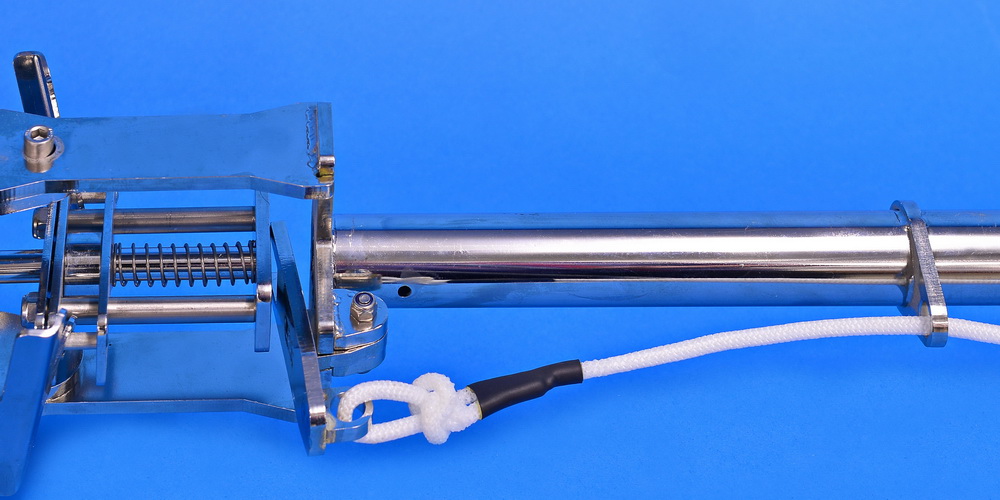

Shaft

  • For 12.000 Ekman
  • AISI 316 stainless steel
  • Length 2 m
  • Extendable to a maximum of 4 m
  • Weight 1,7 kg


Extension shaft

  • For 12.006 A
  • Length 2 m
  • AISI 316 stainless steel
  • Weight 1,5 kg


Drop messenger

  • For model 12.000
  • Brass
  • Weight 500 gr.

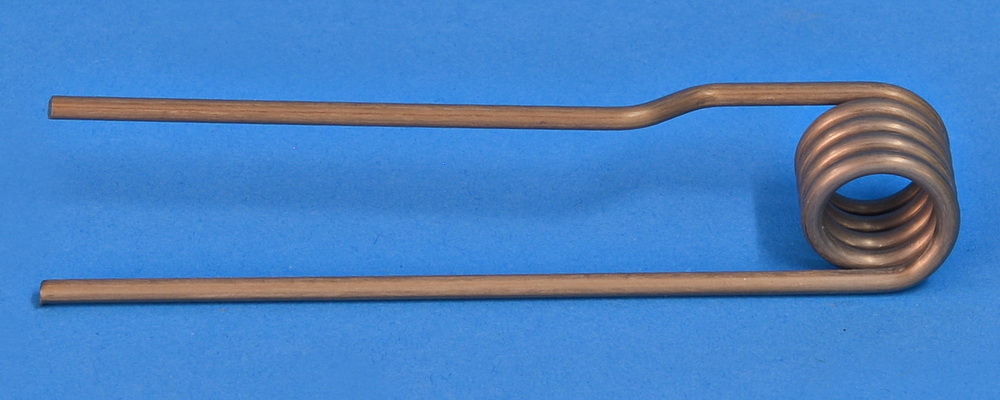

Spring

  • For model 12.000 only
  • Requirement: 2 pcs
  • Weight: 0,2 kg





Custom design with 500 µm stainless steel mesh.

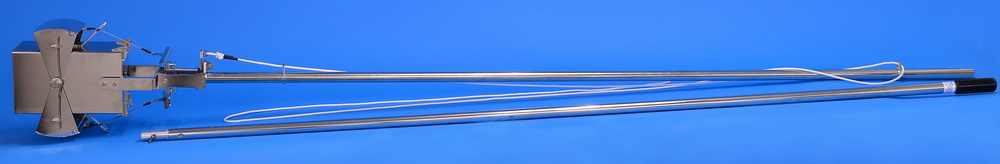

The Ekman can be used with a shaft of 2 or 4 m.


Security clamp for loading.


Standard delivery comes with 2 lids at top of the sampler.


Custom design with 500 µm stainless steel mesh.


The Ekman can be used with a shaft of 2 or 4 m.

Ordering No. 12.000 12.002
Sample volume 5 L
Sample area 225 cm² 400 cm²
Drop messenger, brass 500 g None (not necessary)
Height, loaded
45 cm 65 cm
Weight 5,6 kg 18 kg
Extra weights None 4 x 2 kg or 8 x 2 kg (total weight of corer: 26 or 34 kg)
Spare parts
Drop messenger, brass,
Ø3,2 x 9 cm, 500 gr
Ordering no. 12.001
Spring for model 12.000 only, requires 2 pcs Ordering no. 12.003
