Multi corer 4 x Ø80 mm

71.080 Multi-Corer 4_1

Application:
This multi corer is used for sampling in chemical, geo-chemical and biological applications. Quick change of tubes assures a high operational speed.

Operating depths:
Full oceanographic depth but recommended for shallow water because of its small footprint. Standard delivery comes with 2 detachable plates for better stability.

Capacity:
4 core tubes, PMMA, Ø80/72 mm, length 500 mm.
Penetration depth: 400 mm, approx.

Damper:
The multi corer comes with a hydraulic damper for a smooth penetration, reducing the shock wave.

Dimensions:
Bottom frame: 95 x 67 cm.
Bottom frame with footplates: 95 x 110 cm.
Height of the rack: 170 cm.
Storage: 85 x 67 x 130 cm.

Adjustable penetration depth:
Stepless adjustment (optional). The steeples adjustment bracket order number 70.006, can be mounted on the centre of the corer, giving the user the ability to decide their own depth of penetration of the sea-bed.


Weight:
Weight, standard, without weights: 90 kg.
Weight, standard with 4 weights: 130 kg.
With max. qty. of weights: 210 kg.

Accessories:
Adjustable piston rod (13.003), for ejecting the sample, fraction tray (13.006) used for slicing the sample and rubber bungs and caps for securing the samples while it's in its tube, can be provided as well.

Please contact KC Denmark A/S for a full quote.

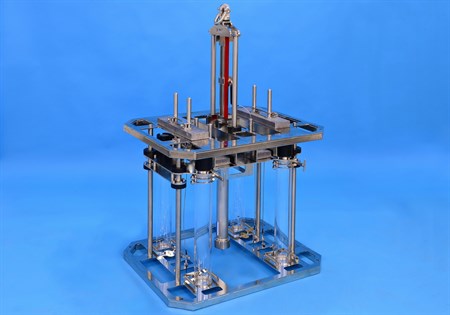

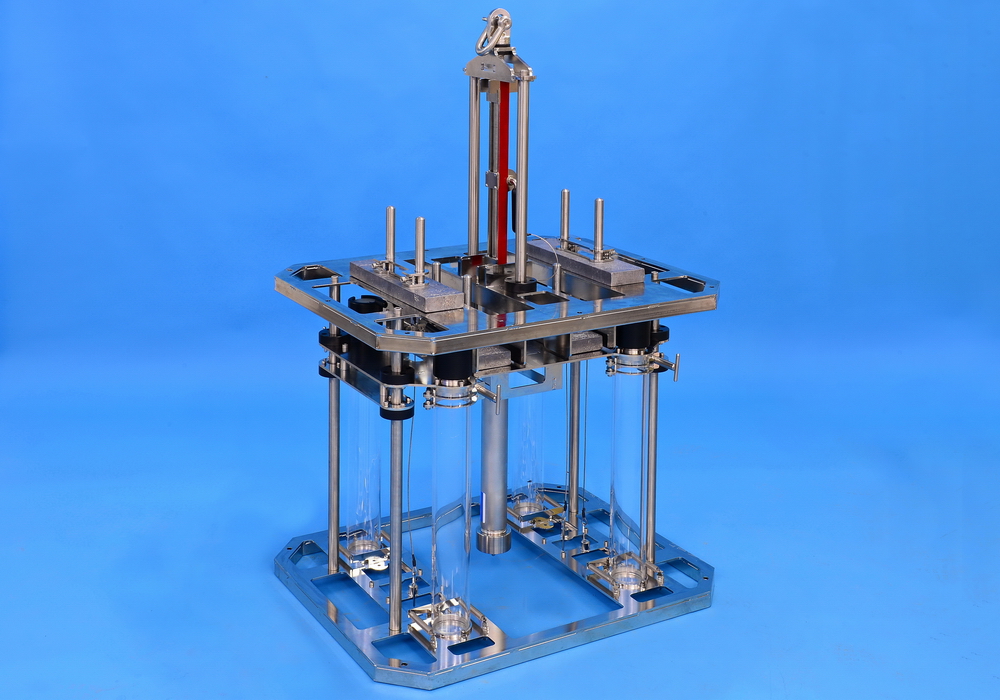

71.080 - Multi corer Ø80 mm.

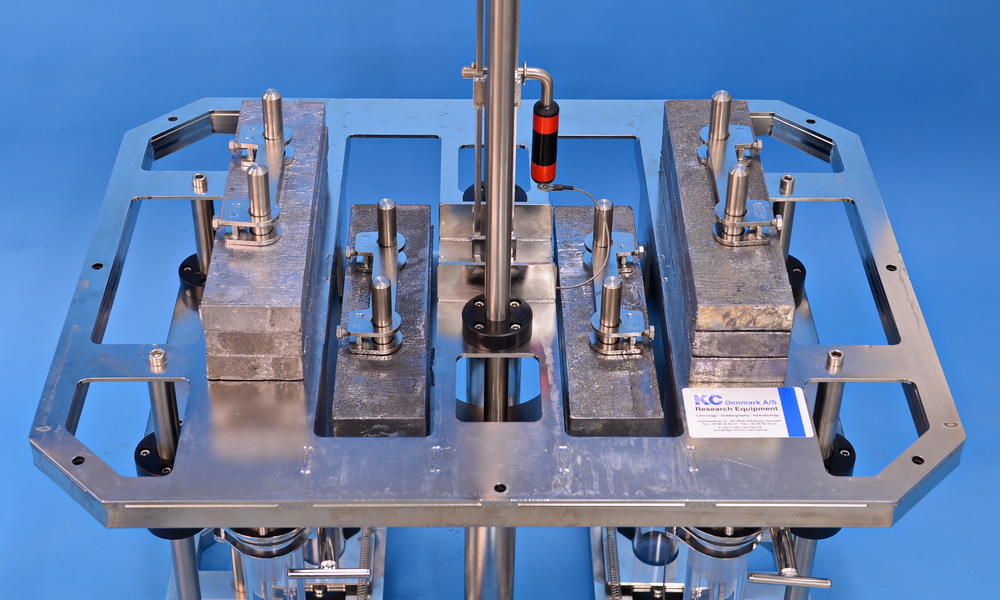

Weight station for the multi corer.

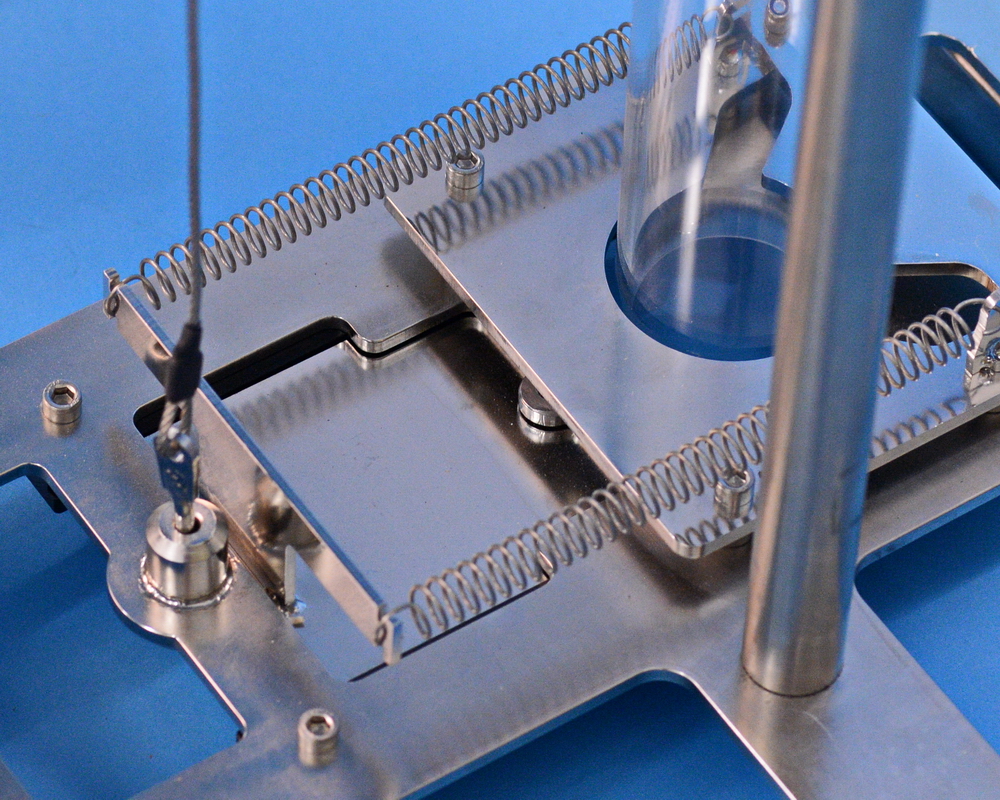

Release system for the multi corer.

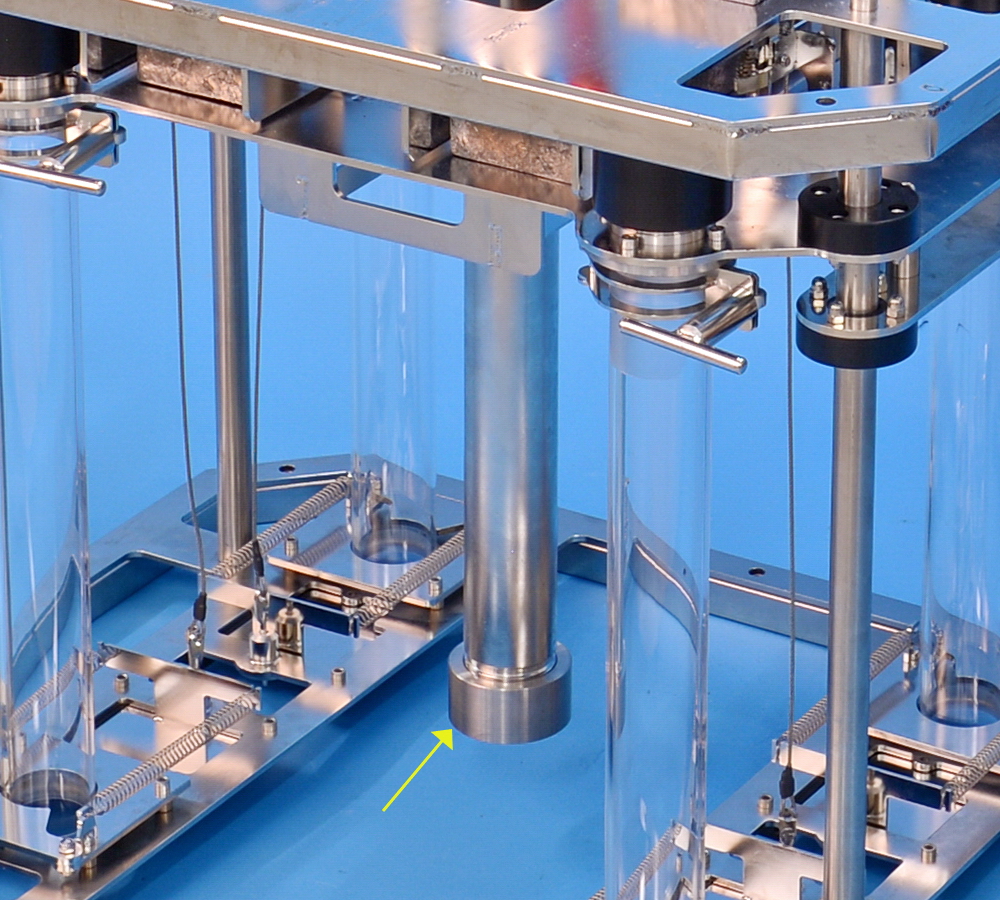

Hydraulic damper for multi corer 71.080.

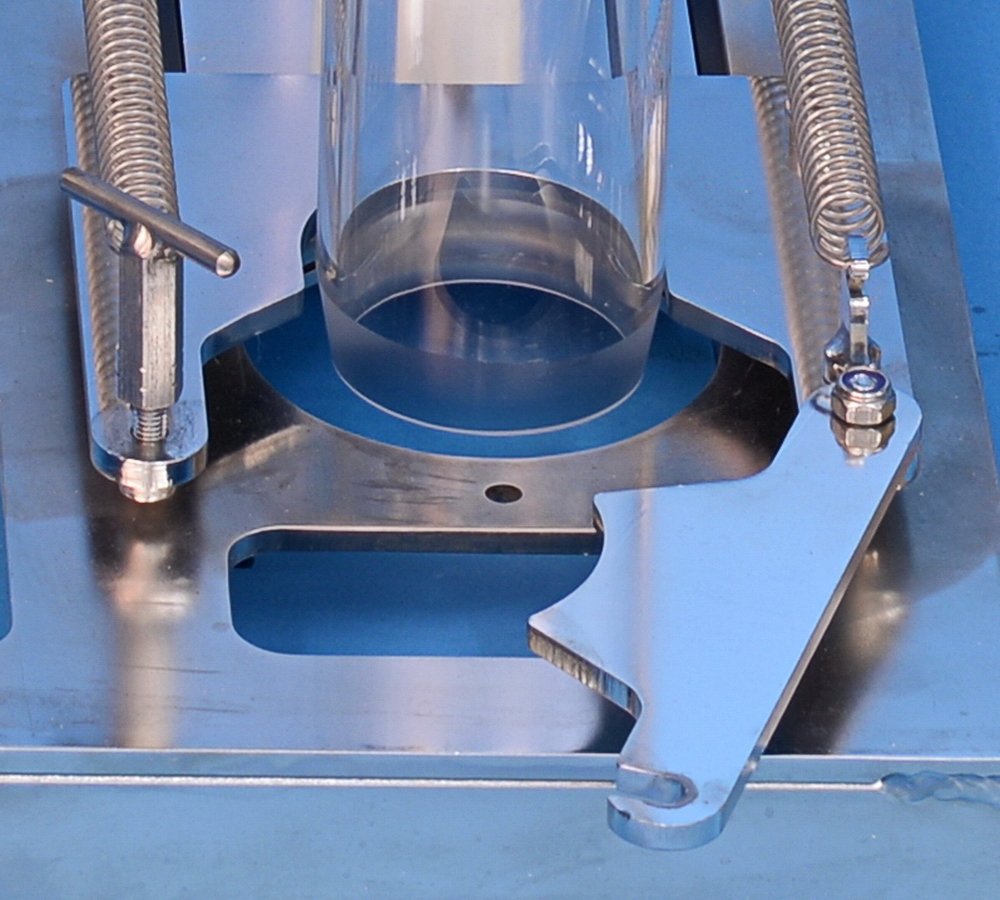

Closing mechanism for the tubes.

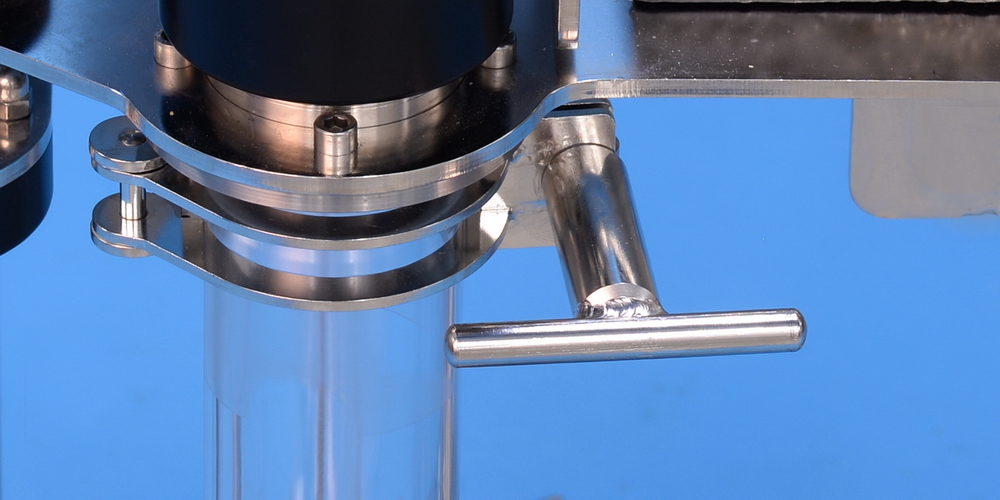

Quick change system for Ø80 mm tubes.

Description Weight

Ordering no.

Multi corer complete, consisting of:
1 pc corer rack
4 pcs sample tubes, Ø80/Ø72 mm, length 500 mm
4 pcs lead weights, each 10 kg, on the moveable rack
1 pc safety lock
1 pc hydraulic damper
130 kg 71.080
Other parts recommended

Lead weight, 10 kg each, maximum mounting 12 pcs. (Standard delivery includes 4 weights) 10 kg 71.001
Core tube, PMMA, transparent, Ø80/Ø72 mm, length 500 mm 0,45 kg 13.055
Shipping information

Standard delivery with 4 weights:
Pallet/wooden box, 120 x 80 x 156 cm
Gross weight: 230 kg
