22.0 KWatt Winch 3 x 400 V AC

Winch

• Power: 22 kW
• Power supply: 3 x 400 VAC (other voltages on request)
• Tractive force, empty drum:
• Finish: Electro polish. As option, we can provide painting
• Bonfiglioli angel-gear motor, protected by a stainless steel housing
• Frequency converter mounted in a cast, aluminium control box with emergency stop and speed regulation, etc.
• Inner diameter of drum is Ø460 mm as standard delivery.
• For larger bend radius of cables, the drum is also avilable with larger diameter
• Remote control with cable (10 m) and Subconn connector.
• Automatic cable guide system
• Automatic brake system with DC-motor brake on top of motor
• Brake resistor, 11 kW, mounted in a separate housing
• Enclosure rating: IP65
• Weight: 1000 kg



40.240 - Winch, 22 kW - 3 x 400 V


40.240 - Winch, 22 kW - 3 x 400 V.


30.353 - Counter for length and speed (optional).


Remote control:

The direction as well as the speed of the winch is controlled by a joy stick. An emergency stop will break any operation immediately. The control has an adjustable belt for wearing around the neck.



Remote control.


Slip-ring device:

Transferring of real-time data, power supply for CTD, etc. can be etablished via a slip-ring device, (optional), mounted on one side of the winch. Up to 8 individual connectors. On the outside of the slip ring device a male Subconn Connector is mounted. Inside the drum a female Subconn Connector is mounted. For slip-ring devices, click here.

All our deck winches support both models of slip ring devices.

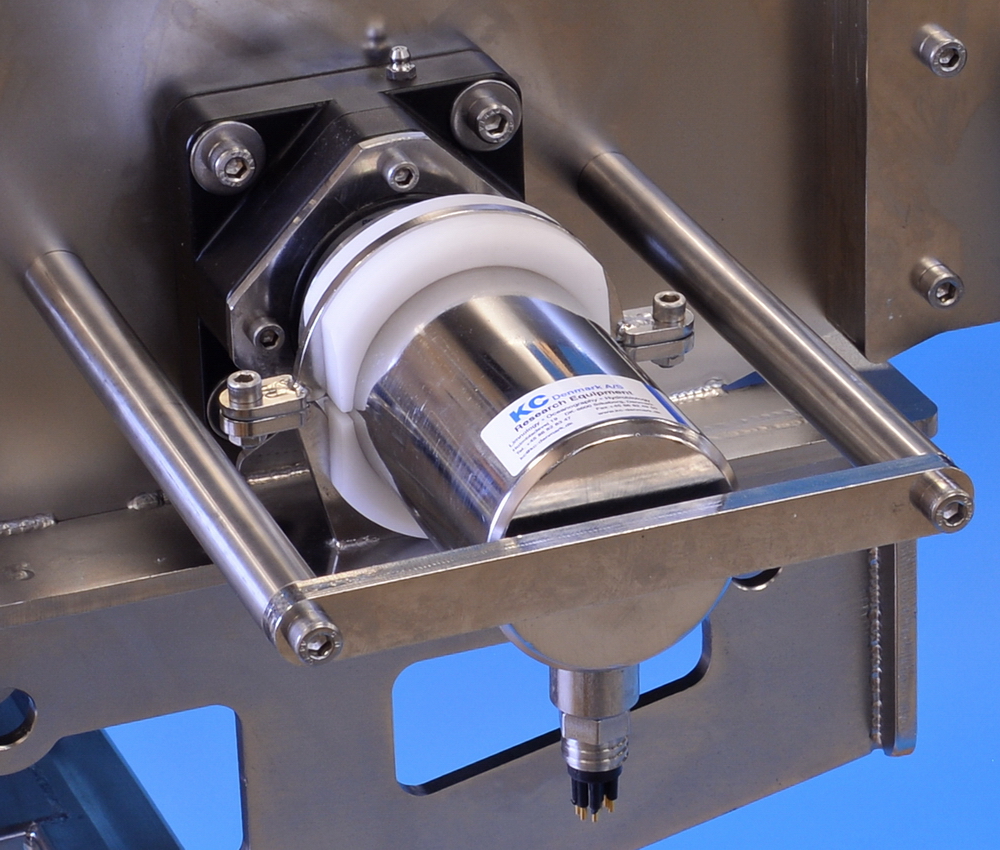

Slip ring device - up to 8 conductors.


Slip ring device - mechanical compatible with Focal design.
