30.000 - Small winch operated by hand:

Application:

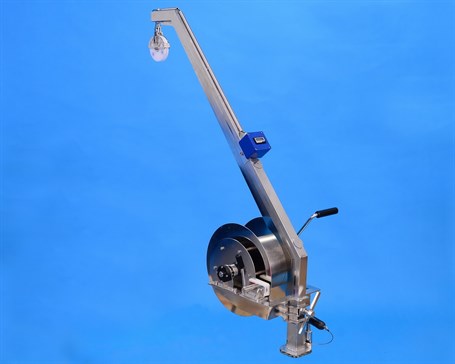

The winch can be used on small research vessels. Suitable for Kajak sediment sampler, small Van Veen and Ekman grabs, water samplers and other small equipment. The winch is shown with 200 m Dyneema line and a counter/wheel (to be ordered separately).

General:
The hand operated winch, model 30.000 is made of AISI 316 stainless steel, with additional reinforcements. It has a max. capacity of 600 m of Ø2 mm wire. The winch is fully rotatable or it can be locked every 45° (requires bracket 30.005 or 30.006). Slip ring device (2-8 conductors) can be mounted (optional). Block wheel, Ø100 mm with flexible hinge (see 30.361 for adding an electronically counter and wheel). For larger loads, a gear box with ratio 3:1 can be added (30.004). NOTE: The gear must be ordered with the winch; it comes as an integrated part of the winch and a subsequent installation is not possible. Standard delivery comes without brackets for mounting on the boat.

Capacity:
600 m of Ø2 mm wire
400 m of Ø3 mm wire
200 m of Ø4 mm wire

Stainless steel wire can be ordered through KC Denmark A/S.

Counter:
The winch comes without a counter, but it can be equipped with a digital counter order number 30.361 resolution 10 cm, LCD display. height of digits 18 mm, with reset function. The meter wheel is made of white POM (plastic) with an AISI 316 stainless steel frame.


Load:
Operation load: 30 kg. Can be extended to 60 kg by adding the gear box 30.004.

Weight:
Net weight of the winch: 20 kg.

30.004 - Gear box:
Gear box, ratio 3:1. Must be ordered with the winch; it comes as an integrated part of the winch. The gear box is made of AISI 316 stainless steel and fits only for the 30.000 winch.

30.3XX - Slip ring device:
Transferring of data or power can be done via a slip ring device (2-8 conductors) (optional). Please refer to the slip ring section.

30.005 - Adjustable bracket:
The 30.005 bracket is made for 30.000/30.040 only, if you wish a custom made design on a bracket for another winch, please contact us with your requirements.









30.006 - Adjustable bracket:
The 30.006 adjustable bracket fits for 30.000/30.040 winch; if you wish a custom made design on a bracket for another winch, please contact us with your requirements.



The bracket is made of AISI 316 stainless steel, and works as a universal bracket, which is able to fit on most boats due to the flexible design.





30.060 R - Portable rack for 30.000/30.040 winch:

• A stand with Ø34 steel bar and a circular plate, on which the 30.000/30.040 winch can be locked every 45°
• The stand can be disassembled for easier transportation
• AISI 316 stainless steel made of square tubes, 40 x 40 mm
• Stainless steel box for adding sandbags or similar to be used as counterweight
• L x W x H: 94 x 58 x 121 cm
• Weight: 37,5 kg
