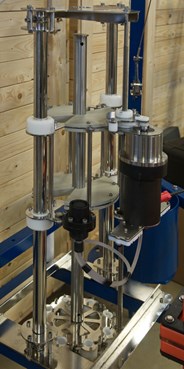

Custom made lander, triangular design with removable rack for the buoyancy spheres:

Antenna:
Manufactured from 2 meter Ø28 mm stainless steel tube, mounted on a floatation rack with 3 pcs of powerful springs, manufactured from AISI 316 stainless steel 316.

Deep-sea profiler:
Max. depth: 6000 m. More details can be found here.

Safety bolt:
For antenna 2 pcs /each.

Flash holder:
Complete, manufactured from green polyethylene (PE - HD).

ST400A XENON FLASHER:
For 6000 m depth.

VHF Radio Beacon:
Transmitter.

Beacon receiver:

Beacon holder:
Complete, manufactured from green polyethylene (PE-HD) and AISI stainless steel 316.

Deep-sea profiler:
Model 500.135, more details can be found here.

Floatation rack:
Removable for easy transportation, made of aluminium tube 50 x 50 x 4 mm, prepared for 2 pcs acoustic release transponder system and without glass spheres.

Catch ring:
Ø50 cm diameter, manufactured from AISI 316 stainless steel, mounted on the floatation rack.
17" glass spheres (floatation) with yellow hard hats PE-HD, buoyancy app. 25 kg for every sphere.

Lower frame:
Manufactured from aluminium tube 50 x 50 x 4 mm with 4 adjustable legs and prepared for burn wire release system.

Burn wire release system:
Manufactured from laser cut AISI 316 stainless steel and holder for acoustic release transponder.

Ballast system:
3 pcs manufactured from aluminium, I.D. Ø26 cm.
3 pcs brackets and 4 pcs acrylic tube for protect ballast chain.
4 pcs adjustable holder for acoustic release transponder made of stainless steel 316 and Polypropylene Plastic.
