Small Plankton Net Ø25 cm

23.000 - Plankton net
23.000 - Small plankton net, diameter 25 cm:

The conical net bag with an upper diameter of 25 cm and a length of 40 cm is made of Monodur Nytal (Nylon) 20 to 500 µm, ordering no. 23.000 or ordering no. 23.002 for a range within 5-15 µm. Plankton nets are available in all types and sizes.

The sample can be removed through a valve at the bottom of the sample cylinder.

Sample cylinders:
The plankton net support various models of sample cylinders:

23.001:
As standard, the plankton net comes with this cylinder made of chromium-plated brass with a valve and a content of 35 ml.

23.004:

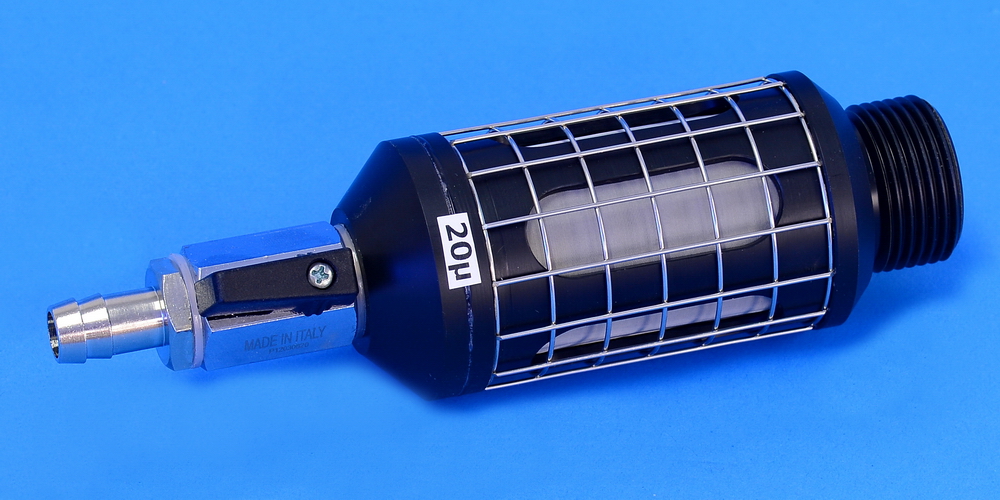

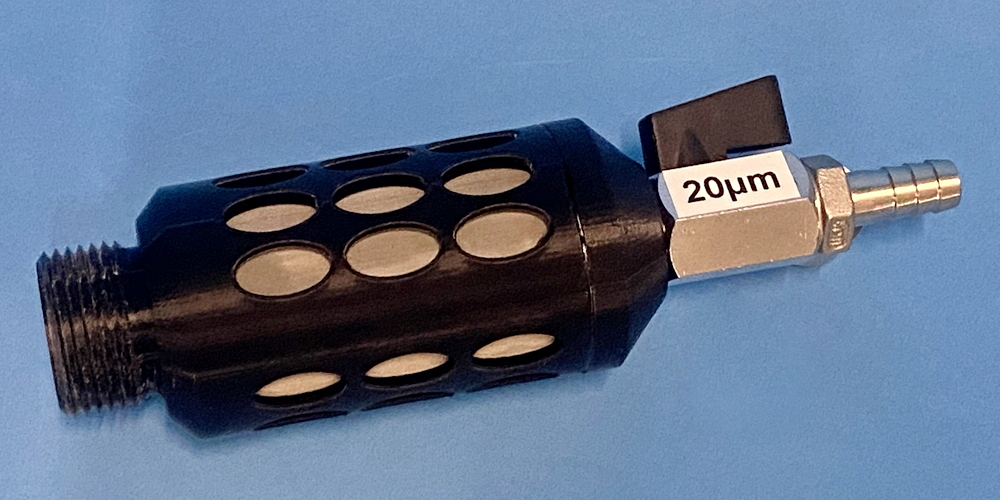

A sample cylinder made of PVC, 5 windows covered by net, mesh size corresponding to the main plankton net, minimum mesh size of 20 µm. Protection net made of stainless steel. It has a content of 80 ml and a valve for emptying the cylinder.

23.951D:
A transparent collecting bottle with a valve and a content of 300 ml.

23.005 Adapter:
Allows using of blue and red cap glass bottles with GL45 thread.













23.006 - Carrying bag:
Small bag for plankton net and accessories.








Digital flow meter:
The plankton net can be equipped with a digital flow meter (optional) for determing the amount of water passing through the plankton net. Available models 23.090 (no back-run stop) and 23.091 with back-run stop.


23.000 - Plankton net, diameter 25 cm.


23.001 - Cylinder with valve. Content 35 ml.


23.004 - Sample cylinder made of PVC, 5 windows covered by net.


23.951D - Transparent collecting bottle with valve, content 300 ml.


23.005 - Adapter for glass bottle.


23.003 - Carrying bag.


23.09x - Digital flow meter (optional).

Description Ordering No.
Plankton net (total weight 0,6 kg) 20-200 µm (includes sample cylinder (23.001) with valve, O.D. 32 mm). Please specify mesh size by ordering. O.D. 25 x 40 cm 23.000
Plankton net (total weight 0,6 kg) 5-15 µm. Please specify mesh size by ordering. O.D. 25 x 40 cm 23.002
Accessories/Spare parts
Protection carrying bag for small plankton net made of beaver nylon. 23.003
Sample cylinder with valve made of brass, chromium-plated, O.D/I.D. Ø32/25 mm. Weight 350 g. Content of bucket: 35 cm³. 23.001
Sample cylinder made of PVC, 5 windows covered by net, AISI 316 stainless steel, mesh size according to the main net, minimum size 20 µm. Valve made of brass, chromium-plated. Content of bucket: 80 cm³. 23.004
