Digital Flow Meter for calibration purposes

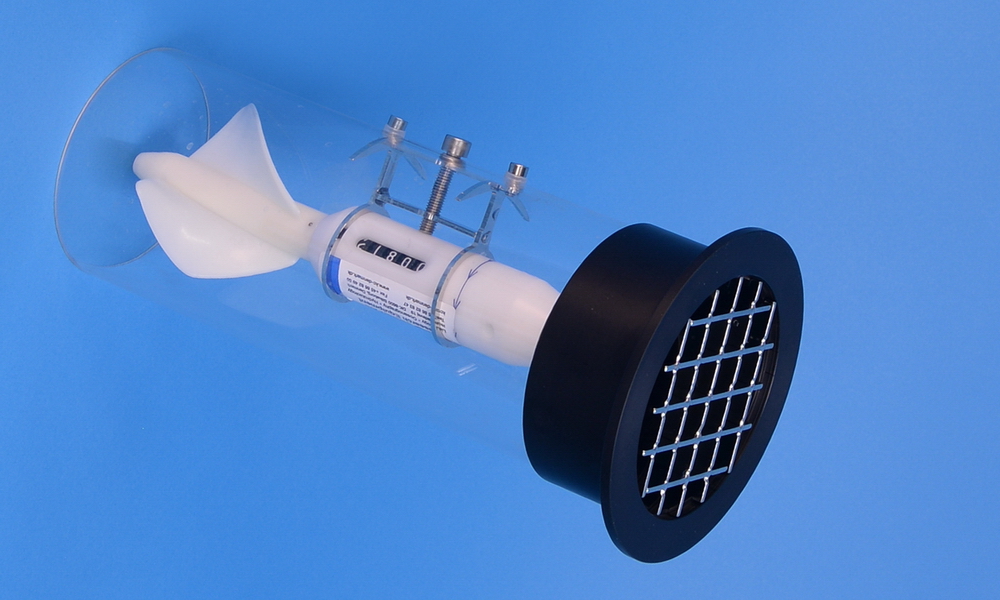

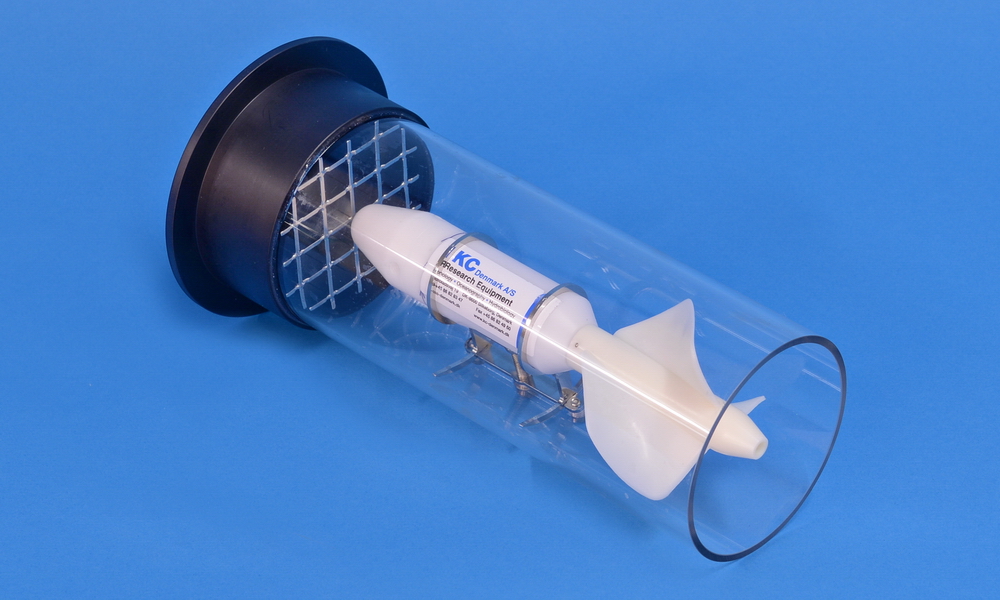

23.095 - Digital flow meter:
The unit can be used as a reference or for a calibration purpose. As standard, it comes with a non-resetable flow meter, counting the flow from the honeycomb through the tube. It is very easy swapping it with a resetable model, which will count regardless of the flow direction.
The flow meter read-out (max. value 99999) vs. water volume can
be calculated using our spreadsheet allowing a quick and intuitive
conversion. The spreadsheet is available
here.
Specifications:
• Back-run stop (non-resetable)
• Mechanical counter with 5 digits
• Rotor: Polyamide, PA 6.6 Nylon rotor
• Nose cone and body: POM plastic
• Gear shaft: Stainless steel main rotor
• Threshold: 20 cm/sec
• Range: 20 cm/sec to 8,0 m/sec
• Honeycomb divided into 10 x 10 mm sections
• Acrylic tube with POM flange, diameter 90/84 mm
• Diameter of tube: 84 mm
• Length of chamber: 250 mm
• Weight: 0,9 kg
