Sandblast Cabins 750 mm

400.250 - Sandblast Cabin, length 75 cm:

Application:
The cabin can be used for all types of powder, (glass-powder, aluminium oxide (corundum), sand-powder and similar powder)).
General:
Sandblast cabin, 750 mm, made of 3 mm aluminium plate (Almg 3). Inside the cabin is mounted an exhaustion (Ø63 mm) with a pipe stub.
Description:
On front are mounted 2 complete glove manifolds, flexible hoses and in the end is mounted a plastic ring with a 2 mm slitted neoprene rubber plate. At the bottom of the cabin is 1 pc stainless steel tray with 5 x 5 mm holes.

On the right side of the cabin a huge door is mounted with an air scoop and 2 pcs of small wall ducts. The door is tightened with a special soft PVC packing. On the sloping front edge, a 3 mm glass plate is mounted in a plastic frame with packing.
Dimensions and weight:
Dimensions of the cabin (inside): L x W x H: 75 x 50 x 55 cm.
Dimensions (outer): 89 x 57 x 67 cm
Weight: 29 kg
Mounting of cabin:
Mounting on a table or wall. Mobile stand and/or height adjustment is optional.
Mobile stand:
Optional: The cabin can be mounted on a mobile stand with 4 pcs 3" rubber wheels and 2 brakes in the front.
Adjustment of height:
Can be done via an electric 24 Volt DC actuator, (optional). Increase of height: Max. 20 cm.
Built-in light:
On the exterior at the top are mounted a box with 2 fluorescent tubes, 2 x 20 W, (colour code 33) and a switch for the light. A glass plate with packing is mounted on the top of the cabin.
Application:
The cabin can be used for all types of powder, (glass-powder, aluminium oxide (corundum), sand-powder and similar powder)).
Standard delivery:
Please note, standard delivery is an unpainted cabin. If you wish you can decide your own colour of the cabin, ordering no. 400.252 (optional).

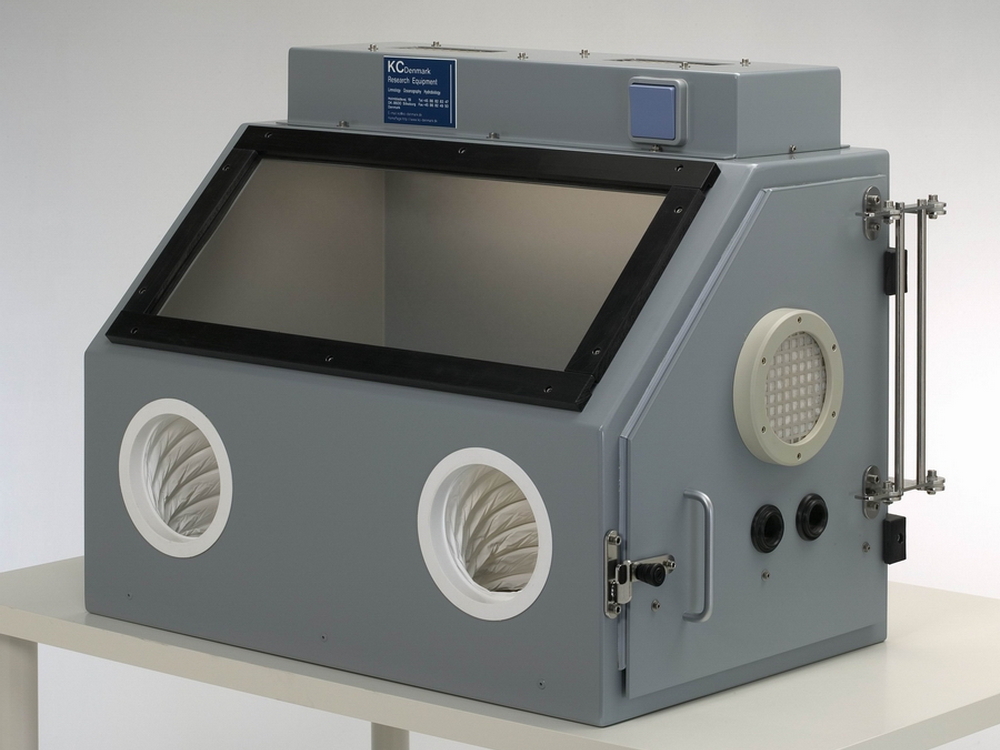

400.250 - Sandblast cabin, length 75 cm. No recycling of powder.


400.250 - Sandblast cabin, right side.


Built-in light illuminates the entire work area.


400.070 - Sandjet blower, nozzle Ø4 mm.


400.080 - Sandjet blower, Tungsten nozzle Ø1 mm.


400.270 - Noise reduction, support for an exhaust system.

Description Ordering no.
Complete sandblast cabin, 750 mm, cabin made of 3 mm aluminium plate. Standard delivery is an unpainted cabin. Colour at your choice: ordering no. 400.252.

Dimensions:
(Inner): L x W x H: 75 x 50 x 55 cm
(Outer): L x W x H: 89 x 57 x 67 cm

400.250
Accessories
1 pc stable aluminium stand with 4 pcs 3" rubber wheels, 2 of them with brakes. Dimensions with mobile stand:
400.251
Painting of cabin. Colour at your choice. 400.252
Complete 24 V DC actuator system (1 pc actuator, control box and remote control) for height adjustments mounted on stand and cabin. Maximum increase of height: 20 cm.
400.253
Spare parts
2 mm thin slitted neoprene rubber plates for glove manifolds. 400.205
Foot pedal with wire (2 m) 400.110
