Rectangular dredge, 40 x 20 cm
19.600 and 19.605 - Rectangular dredge:
- Application:
- 19.600 KC rectangular dredge is for collecting biological
and/or mineralogical samples with an opening of 40 x 20 cm (L x H).
A smaller version (19.580) is also available, see below.
- Material:
- The rectangular dredge is made of 3 mm AISI 316 stainless steel
plate. The two large sides of the frame are furnished with a row of
teeth and has a total of 52 pcs.
Guiding arms: - Two guiding arms, made of Ø10 mm stainless steel, will protect the net bag.
- Net bag, model 19.600: A nylon net bag, length 50 cm, is mounted at the end of the frame. Standard mesh size is 500 µm, but other sizes can be made on request.
- Net bag, model 19.605: A solid frame with
reinforcements for the steel net, mesh size 2000 µm. A total of 66
windows supports a filtration area of approx. 2100 cm².
19.580 - Small rectangular dredge:
Is a smaller version of the 19.600 rectangular dredge, with an opening of 20 x 10 cm (L x H). The nylon net bag is mounted at the end of the frame and comes as a standard with mesh size of 500 µm, but other sizes can be made on request.

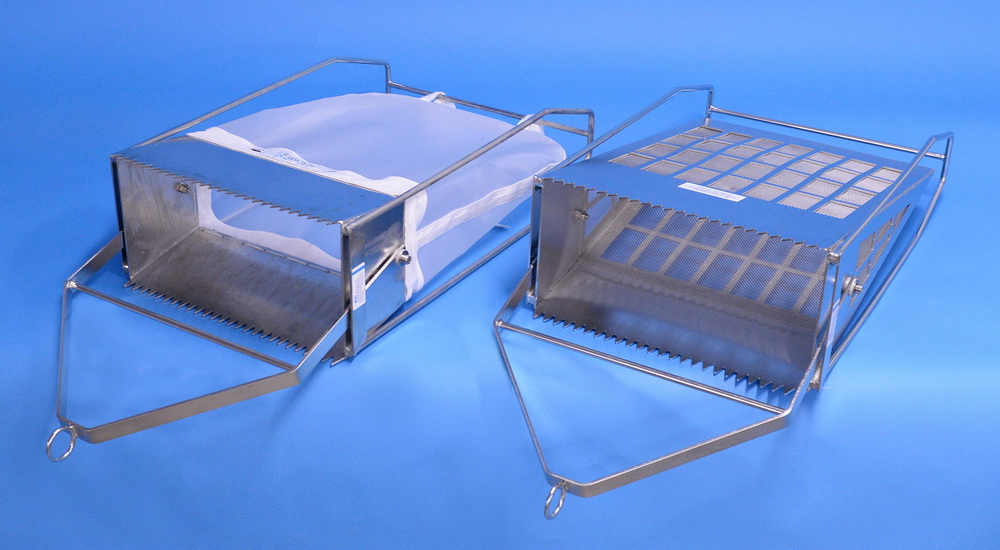

19.600 and 19.605 rectangular dredges.

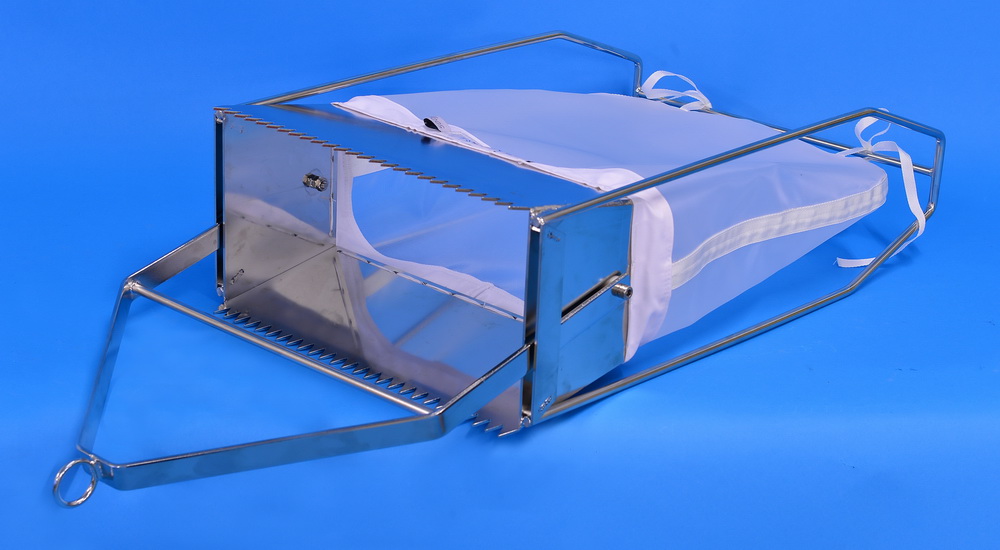

19.600 - Rectangular dredge.

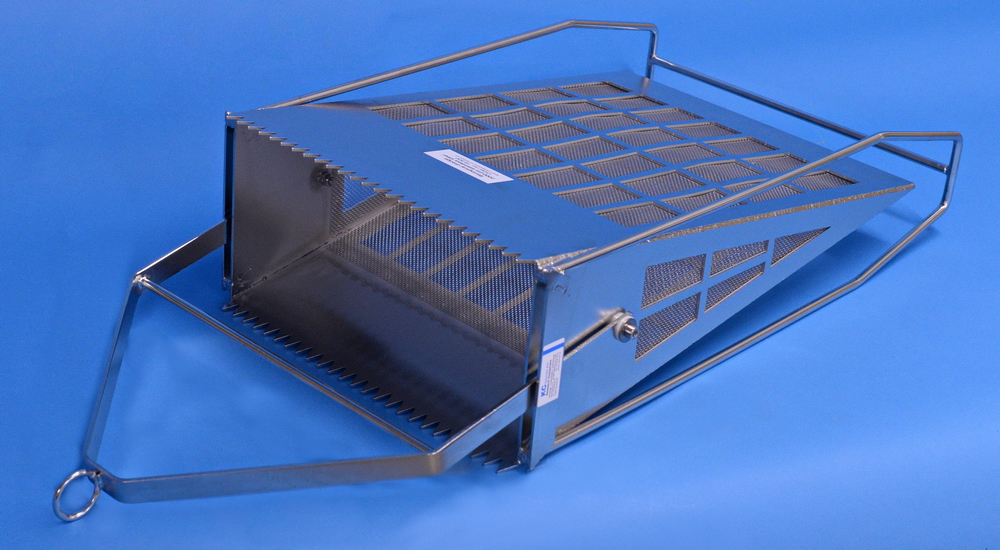

19.605 - Rectangular dredge for sampling seashells, etc.

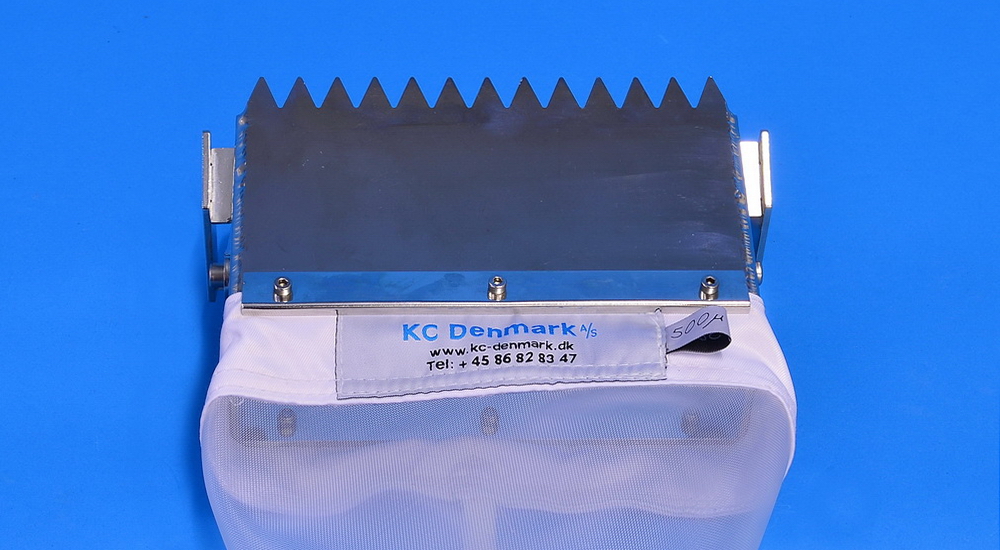

Picture shows the row of teeth of the 19.580 model, the larger model 19.600 has a total of 52 pcs.

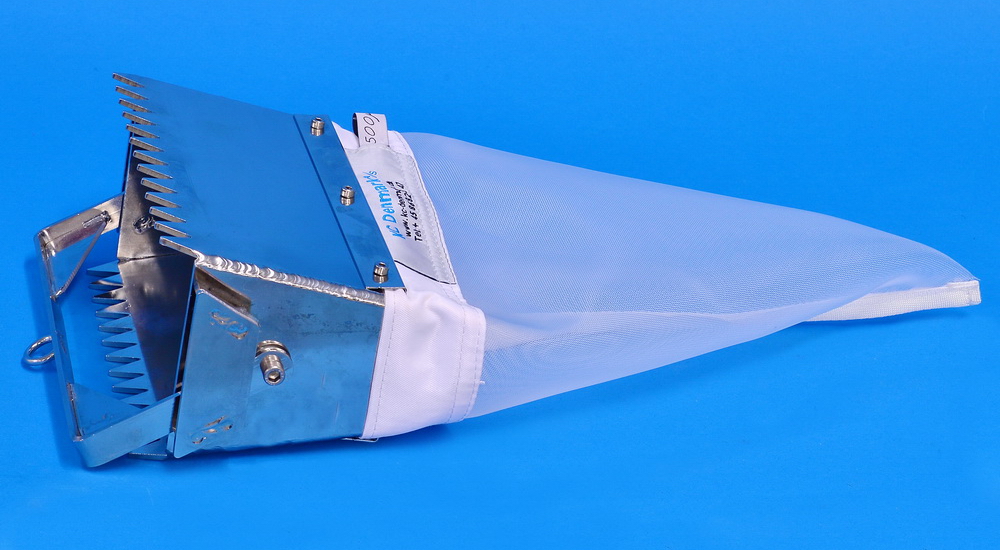

19.580 - Small rectangular dredge, 10 x 20 cm opening.
| Ordering No. | 19.600 and
19.605 |
| Weight: | 19.600: 8
kg 19.605: 13,2 kg |
| Dimensions, mouth, L x H: |
40 x 20 cm |
| Length of net: | 50 cm |
| Overall dimensions, L x H x W: | 105 x 25 x 43 cm |
| Spare part net bag, 500 µ: | 19.601 |
