Sandblast cabin, no recycling

400.210 - Sandblast cabin, no recycling of powder.
400.210 - Sandblast Cabin, no recycling of powder, length 150 cm:

Application:
Sandblast cabin without powder reservoir for recycling of sandblasting material. Can be used for all types of powder, (glass-powder, aluminium oxide (corundum), sand-powder and similar powder)). Cabin made of 3 mm aluminium plate. (Almg 3). The back side of the cabin has an extraction (square tube) with a pipe stub.

Description:
On front are mounted 4 complete adjustable glove manifolds, flexible hoses and inside a plastic ring with a 2 mm slitted neophrene rubber plate. On the sloping front edge a 3 mm glass plate is mounted in a plastic frame with packing.

Both ends of the cabin has a huge door and the right door has an air scoop and 2 pcs of small wall ducts. The doors are tightened with a special soft PVC packing.

The bottom of the cabin comes with 3 removable stainless steel trays with 5 x 5 mm holes.

Built-in light:
On the exterior at the top are mounted a box with 2 fluorescent tubes, 2 x 40 W, (colour code 33) and a switch for the light. A glass plate with packing is mounted on the top of the cabin. Dimensions 120 x 20 cm.

Adjustment of height:
Adjustment of height: 20 cm with 2 pcs of 24 Volt DC actuators (optional).

Dimensions:
The cabin (inside): L x W x H: 150 x 50 x 55 cm.
Cabin with mobile stand: L x W x H: App. 160 x 65 x 170 cm.


400.210 - Sandblast cabin, no recycling of powder, length 150 cm.


Built-in light illuminates the entire work area.


A dust filter at end of the cabin.

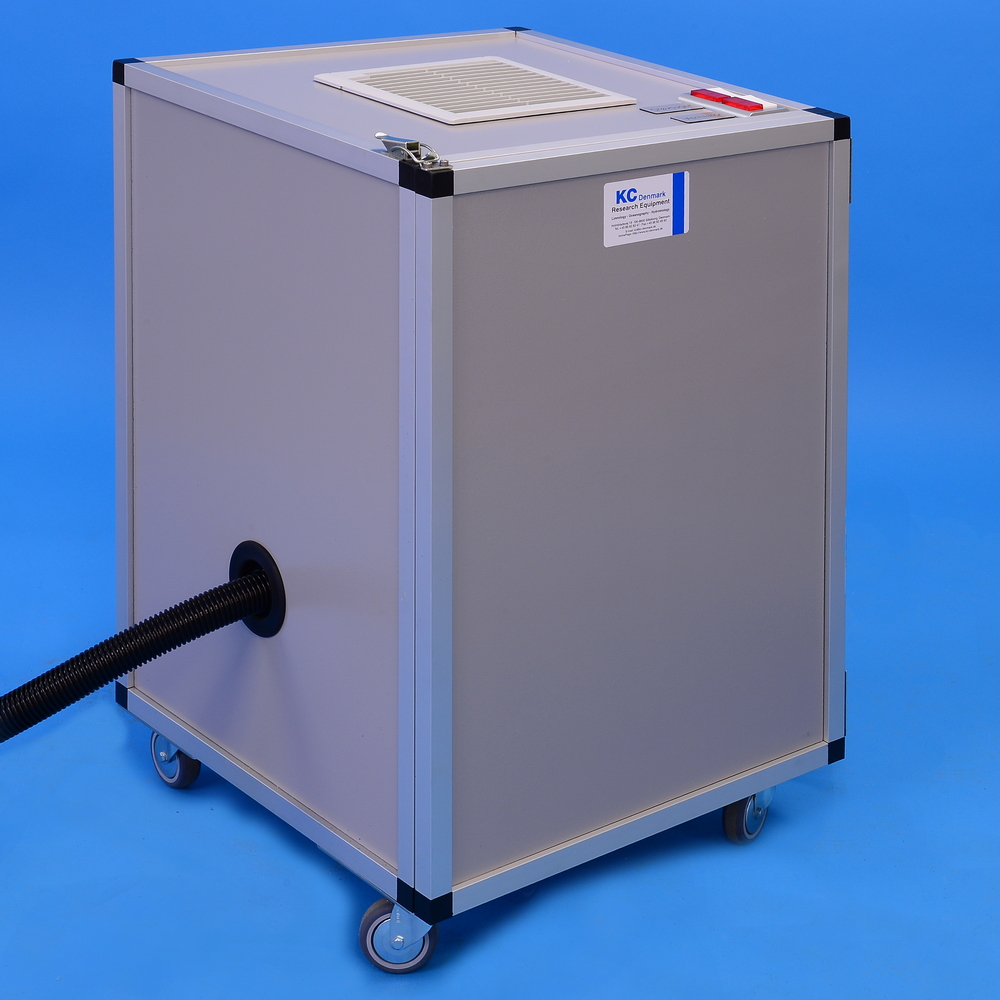

400.270 - Noise reduction, support for an exhaust system.


400.070 - Sandjet blower, nozzle Ø4 mm.


400.080 - Sandjet blower, Tungsten nozzle Ø1,8 mm.
