Small multi water sampler 6 x 100 ml

100.205 A . Multi water sampler, 6 x 100 ml
100.205 - Small multi water sampler, 6 x 100 ml:

The photos show a model with 8 x 100 ml. The pressure compensation is shown to the left.

General:
This is a new model multi water sampler with 6 pcs 100 ml syringes. The model can operate on 6000 meter depth.
Operating voltage is between 12 and 24 V DC. Every time the motor gets a pulse it will release one syringe. As option, a time lapsed trigger can be attached. The motor is pressure compensated for 6000 m depth.
The multi water sampler can be used on landers for taking samples from seabed or incubator chambers or placed on a ROV for taking samples over oil pipelines.

Specifications:
• Volume: 6 x 100 ml
• Deployment up to 12 months with the standard battery
• Reverse functionality (injection or suction function)
• Syringes: Nylon PA 6.6
• AISI 316 stainless steel
• Finish: Electro polish
• Programmable trigger can be mounted (optional). Interface: USB
• Max. depth: 6000 m with battery 100.226 or 4000 m with 100.217
• Power supply: 24 V DC, current 1 Amp
• Comes without cables, trigger, battery cylinder, etc.
• Time to fill a syringe: 10 sec.
• Diameter: 290 mm
• Height, loaded: 330 mm
• Height, released: 450 mm
• Weight: 15,7 kg


100.205 R - Rack for multi water sampler:
• Rack for mounting of 100.210 water sampler and battery cylinder
• AISI 316 stainless steel
• Finish: Electro polish


100.205 - Multi water sampler, 6 x 100 ml.


Battery cylinder, cables, charger and laptop; all accessories to be ordered separately.


100.217 - Battery cylinder for 4000 m or model 100.226 for 6000 m.


Release mechanism.

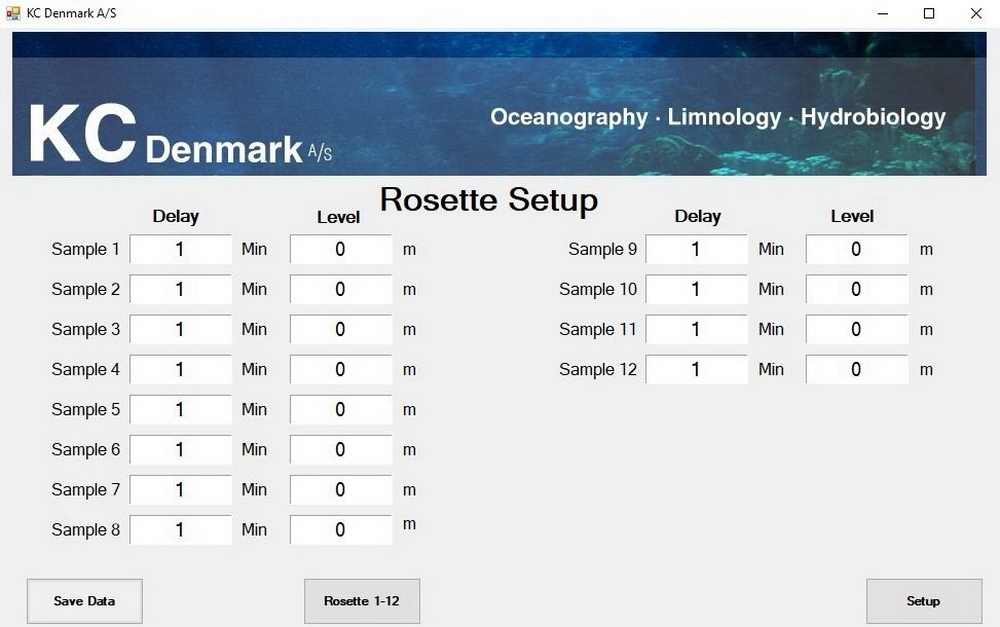

Intuitive user interface for programming the sampler.


100.205 R - Rack for mounting the multi water sampler. Shown with a 12 x 100 ml model.
