Tubular counting chamber (A)

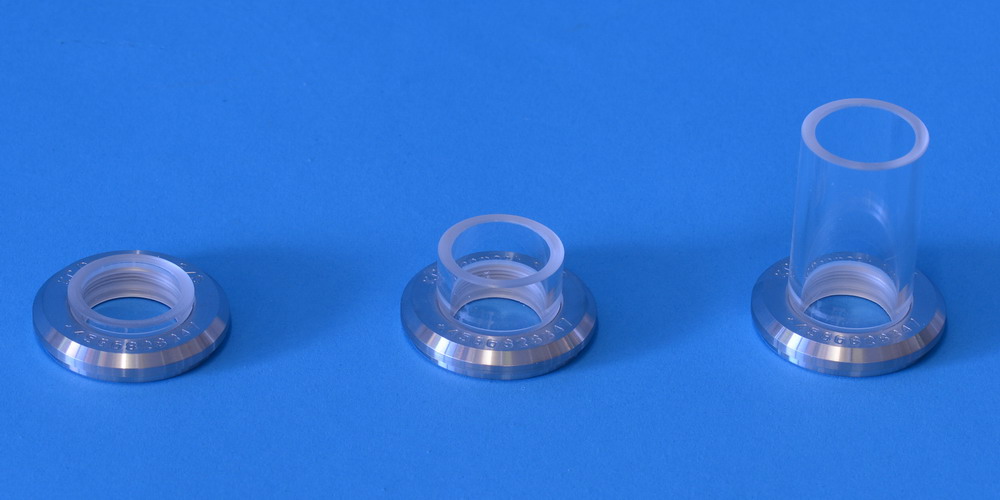

20.006 - Threaded ring with chambers of 5, 10 and 25 ml.
20.000 - KC tubular counting chamber (A):


The tubular counting chamber is a standard manufacture, which fits almost any type of inverted microscope.

The base ring, manufactured from AISI 316 stainless steel has an outer diameter of 47/42 mm. Inner thread: M30 x 1.



20.006 - Threaded ring.


20.002 - Threaded ring with 20.003 chamber, 10 ml.


20.006 - Threaded ring with chambers of 5, 10 and 25 ml.


20.001 - Top glass - package of 10 pcs.


20.005 - Bottom glass - Package of 100 pcs.


Description Ordering No.
A complete counting chamber consists of: one tubular chamber (optional) and one AISI 316 stainless steel base plate
20.000
Accessories
Acrylic tubular chambers.

O.D/I.D: 30/24 mm

5 ml, L=11 mm 20.002
10 ml, L=22 mm 20.003
25 ml, L=55 mm 20.004
Top glass O.D. 32 x 1.0 mm Package of 10 pcs 20.001
Bottom glass O.D. 27.5 x 0.2 mm Package of 100 pcs 20.005
Base plate, threaded, (M30 x 1) AISI 316 stainless steel. Outer dimensions: 47/42 mm. 20.006



caution.gif Do not use alcohol for cleaning acrylic parts
