18,5 kWatt Winch 3 x 400 V AC

Winch
40.230 - Winch, 18,5 kW:


General:
CTD winch for conductor cable Ø11,43 mm. By using a wider drum, the capacity can be increased on request. Inner diameter of drum: Ø460 mm. Outer diameter max. Ø750 mm.

Capacity:
2000 m conductor cable Ø11,43 mm.

Tractive force:
460 mm: (Empty drum): 2800 Nm.

Variable speed:
The speed is fully adjustable and regulated by a frequency converter (15 kW), All parts are mounted in a control box with emergency stop and speed regulation, etc.

Disc brake and DC motor brake:
A disc brake, Ø600 x 8 mm, AISI 304 stainless steel, is mounted at the side of the drum. An additional DC motor brake system locks the winch as soon as the joystick is in neutral position.

Control box:
The control box is manufactured from cast aluminium with On/Off switches, indicator lamps, emergency-stop, and joy-stick. Built-in heating element controlled by a thermostat to prevent condensate water and to allow arctic use to -40 °C. Enclosure rating: IP 65.

Gear box:
Bonfiglioli angle-gear. Painting: 2 primary colours, 1 RAL 7035 and 1 transparent lacquer (NATO norm).

Slip ring device:
The winch can be equipped with an optional slip ring device, (2-8 conductors).

Cable guide:
Automatic cable guide. Correct performance cannot be guaranteed for wire diameters <5 mm.

Arctic use:
As option, the winch gear motor can be delivered with heating elements and thermostat to ensure an error free operation down to -40 °C. Price on request.

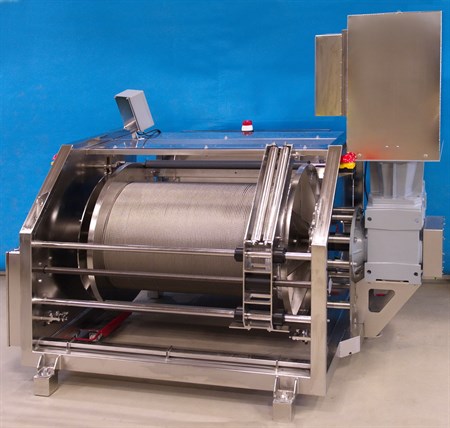

40.230 - Winch, 18 kW.

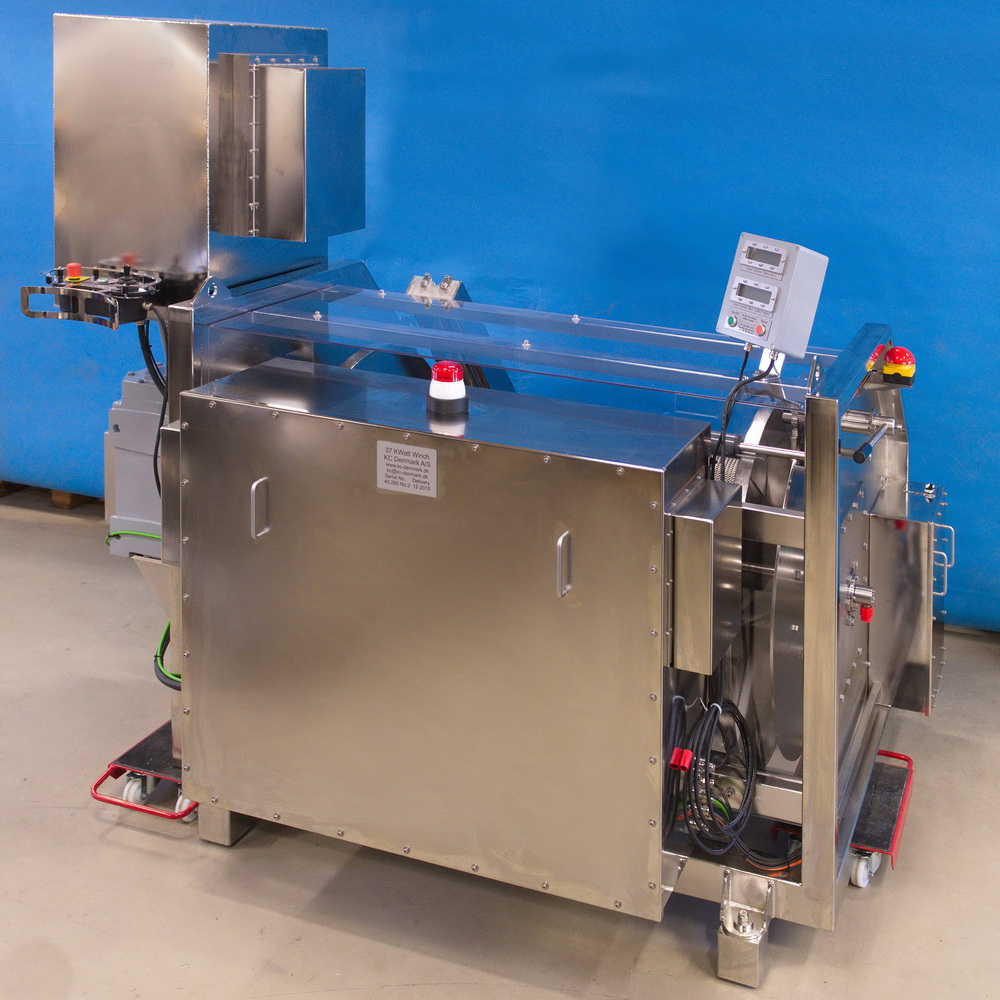

40.230 - Winch, 18 kW.
