Tubular counting chamber (B)

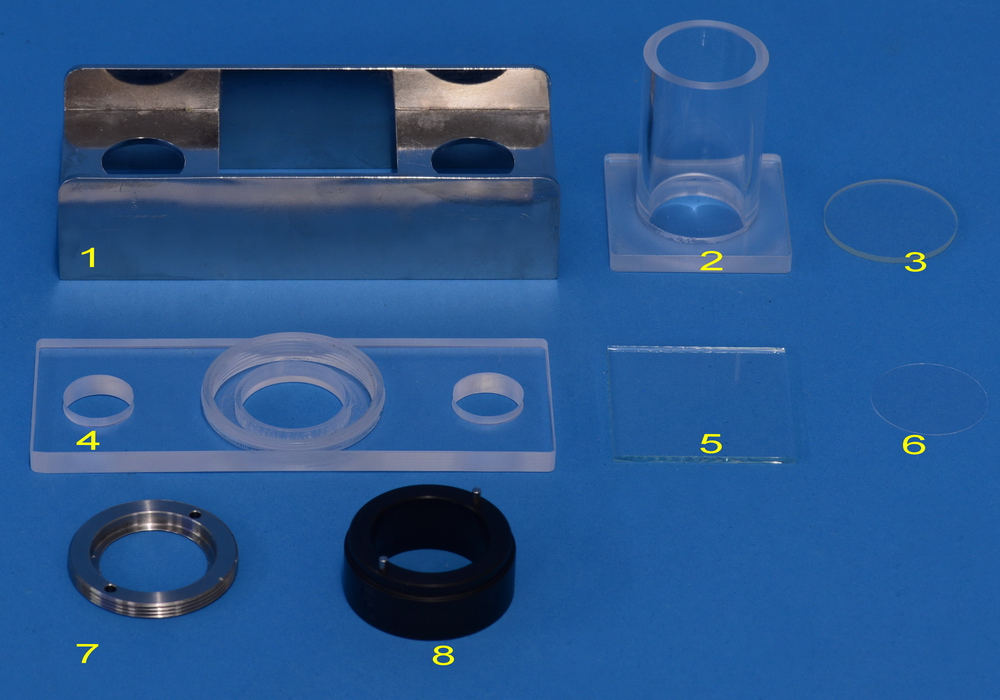

Complete set of counting chamber.

KC tubular counting chamber (B)


The tubular counting chamber is a standard manufacture, which fits almost any type of inverted microscope.





Complete set of the counting chamber, shown with 21.002 chamber (25 ml).

Description Ordering No.
A complete tubular counting chamber consists of: 1 base plate (4), 1 thread ring (7), 1 ring detacher (8), 1 holder for bottom plate (1) 21.000
Accessories
(2) Acrylic tubular chambers

O.D/I.D: 30/24 mm

10 ml, L=22 mm 21.001
25 ml, L=55 mm 21.002
50 ml, L=110 mm 21.003
100 ml, L=220 mm 21.004
(4) Base plate with 2,4 ml content, exclusive threaded ring, 21.007 (to be ordered separately). 21.006
(3) Top glass
O.D. Ø32 x 32 x 1.8 mm
Package of 10 pcs
20.001
(6) Bottom glass
O.D. Ø27.5 x 0.2 mm
Package of 100 pcs
20.005
(7) Threaded ring, AISI 316 stainless steel 21.007
(8) Ring detacher 21.008
(1) Holder for bottom plate 21.009



caution.gif Do not use alcohol for cleaning acrylic parts
