Gravity Corer Ø101,6 mm

13.540 - Gravity corer, diameter 101,6 mm:

Application:
The 13.540 gravity corer Ø101,6 mm is designed for taking samples in sandy sediment featuring a detachable core tube with a maximum length of 6 m, (optional). Up to 12 m in soft or muddy sediment. The corer is fully manufactured from AISI 316 stainless steel. Finish: Electro polish.

The top of the corer has 6 steering fins and below a platform with room for a maximum of 10 lead weights, each 20 kg. (Standard delivery comes with 2 pcs of lead weights).

13.540 - Gravity corer, complete, consists of:
• 1 pc corer body with steering fins and weight platform
• 1 pc corer tube AISI 316 stainless steel. Length 1500 mm
• 2 pcs lead weights, 20 kg each
• 1 pc orange peel closing system
• 1 pc carver
• 1 pc PVC internal liner, grey, 1500 mm
• Weight: 130 kg (with two lead weights)
• Max. weight with 10 pcs lead weights: 290 kg
• Comes with 1 package of spikes 3,4 x 90 mm (13.185)

Extending the length of the 13.540 gravity corer:
Each core tube has a length of 1,5 m, by using a coupling device (13.543) you are able to extend the overall tube length of the corer by 1,5 m in each interval.

We recommend the standard size for the core does not exceed 3 m, however in very soft sediment, samples of 6 m or up to 12 m is possible. As an alternative, KC Denmark offer a variety of larger gravity corers capable of taking longer samples (13.770 gravity corer Ø121 mm or 13.750 gravity corer Ø140 mm), we recommend 10 lead weights for a 3 m sample or longer on our 13.540/Ø101,6 mm gravity corer.

Corer tube dimensions:
O.D 101,6/I.D 93,6 mm x 1500 mm.

Plastic liners (Grey PVC).
Dimensions: O.D 90/I.D 86 mm x 1500 mm.

Plastic liners (Partially transparent, light blue colour).
Dimensions: O.D 90/I.D 86 mm x 1500 mm.

Extension (13.560) for piston corer functionality:


Optional:
To make the gravity corer function as a piston core, the extension package 13.560 can be bought; the standard module comes with a 1,5 m wire, please note that if the gravity corer has been extended in length, a new wire kit needs to be bought.

The standard package 13.560 consists of:
• 1 pc Kullenberg releaser inclusive Ø4 mm wire
• 1 pc weight station (30 kg) for Kullenberg releaser
• 1 pc cap nut with shackle
• 1 pc piston
• 1 pc stainless steel wire for 1500 mm core tube or additional kit, see below

Below is a picture of the 13.540 Gravity corer with the extension package 13.560 installed with a 1,5 m tube.




13.560 - Gravity Corer, standard package.

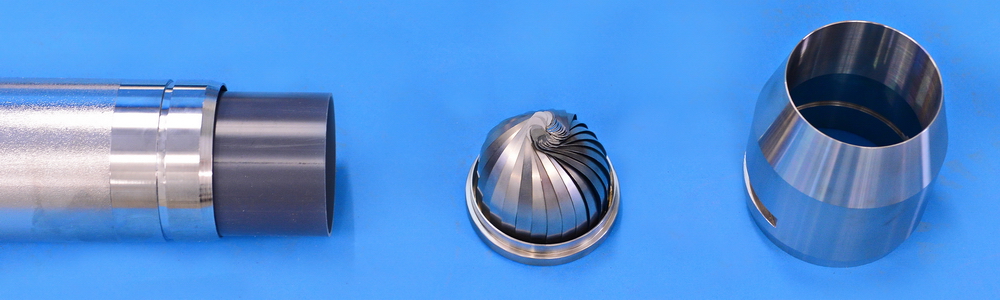

Close-up of the orange peel, liner and carver for the Gravity Corer.


13.544 - Carver, AISI 316 stainless steel.


13.547 - Orange peel closing system.


13.569 - Tube detacher.


13.549 - Drum with ratchet device.


Spikes 13.185 is needed to secure the carver.


13.541 - 1,5 m corer tube for main rack.


13.548 - Piston rod, used for ejecting the sample.


Extension for piston corer function 13.560.


13.904 - 2 trestles holds the sample tube for ejecting the sample.


13.540 Gravity Corer Ø101,6 mm, with weight station.

Description Ordering no.
Gravity corer, manufactured from AISI 316 stainless steel, complete consisting of:
1 pc corer body with 6 steering fins and weight platform. Extended body for a higher number of weights, max. 10 pcs.
1 pc corer, AISI 316 stainless steel, length 1500 mm
2 pcs lead weights, 20 kg each
1 pc orange peel closing system - core catcher
1 pc carver with cutting edge (nose piece)
1 pc PVC internal liner, 1500 mm
Total weight: 130 kg. Max. weight: 290 kg. (For a core tube of 1500 mm and 10 pcs of weights).
13.540
Other parts recommended
Corer tube, AISI 316 stainless steel, Ø101,6 x Ø93,6 x 1500 mm, weight 14 kg. 13.541
Extension steel corer tube, AISI 316 stainless steel, Ø101,6 x Ø93,6 x 1500 mm, weight 14 kg. 13.542
Coupling device for connecting 2 pcs tubes, weight 3 kg. 13.543
Carver with cutting edge, weight 3 kg. 13.544
Internal PVC liner, Ø90 x Ø86 x 1500 mm 13.545
Internal PVC liner, Ø90 x Ø86 x 1500 mm, partially transparent, (light blue colour). 13.556
Lead weight, 20 kg each 13.546
Orange peel closing system, (core catcher), weight 1 kg. 13.547
Piston rod for ejecting the sample 13.548
Drum with ratchet 13.549
Extension for piston corer functionality requires:
1 pc Kullenberg releaser inclusive weight station (30 kg) and wire. 1 pc cap nut with shackle, 1 pc wire for 1500 mm tube, (standard delivery).

Note: The wire length for Kullenberg releaser and for the internal piston must be changed accordingly to the length of the sample tube.

13.560
