Benthic chamberHaps Operated by hand
50.820 - Haps corer operated by hand:
- Application:
- Sediment sampling in shallow lakes with a maximum depth of
approx. 4 m. Taking a good sample demands half-hard sediment.
General: - The corer head is manufactured from AISI 316 stainless steel and mounted on a 4 m (2 x 2 m), O.D 28 mm stainless steel shaft with a solid assembly fitting.
It is very easy to mount the corer tube on a corer head securing with a spring-loaded mechanism.
A non-return flap is mounted beneath the corer head to ensure a good vacuum preventing the sample from exit.
- Operation:
- During penetration the non-return flap and a shovel will be held open manually by a 5 mm polyester line.
After withdrawing the corer from the sediment, the hand held line has to be released and the non-return flap and the shovel under the corer tube will close.
- Delivery:
- Standard delivery comes exclusive core tube and sample ejection
aggregate (extruder) which must be ordered separately.
50.820 - Shown in half-open position.

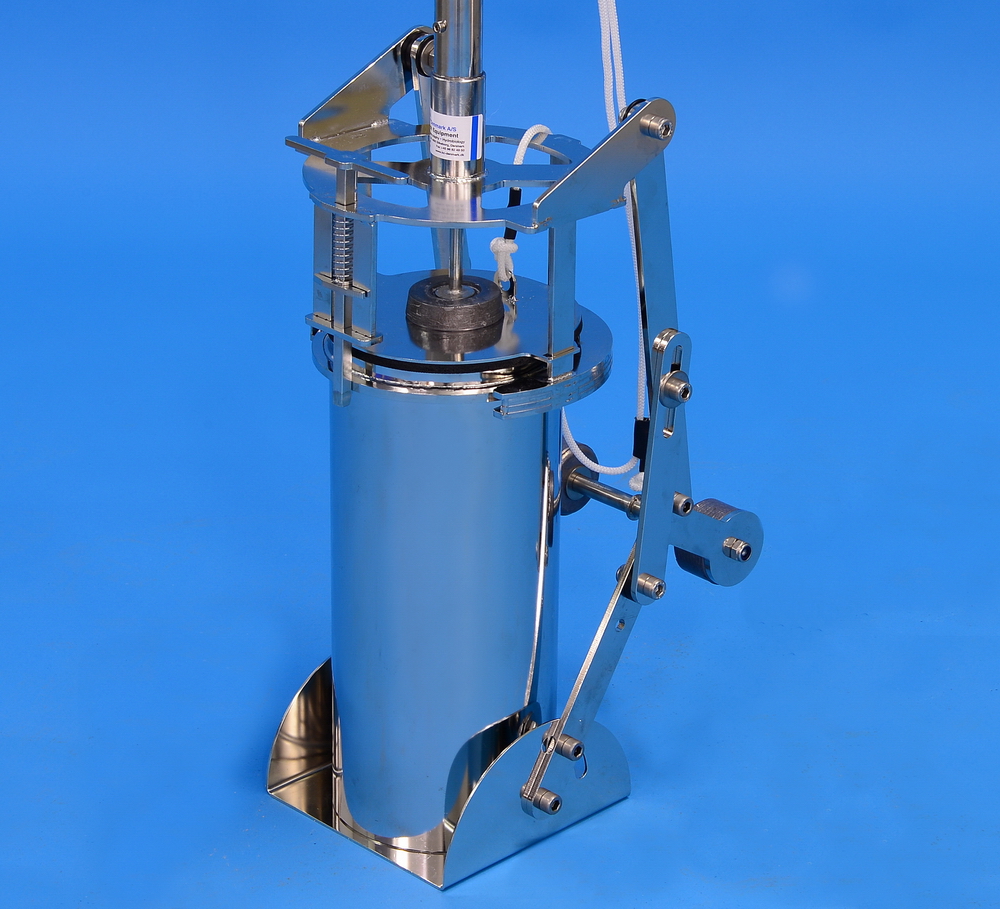

50.820 - Closed position.

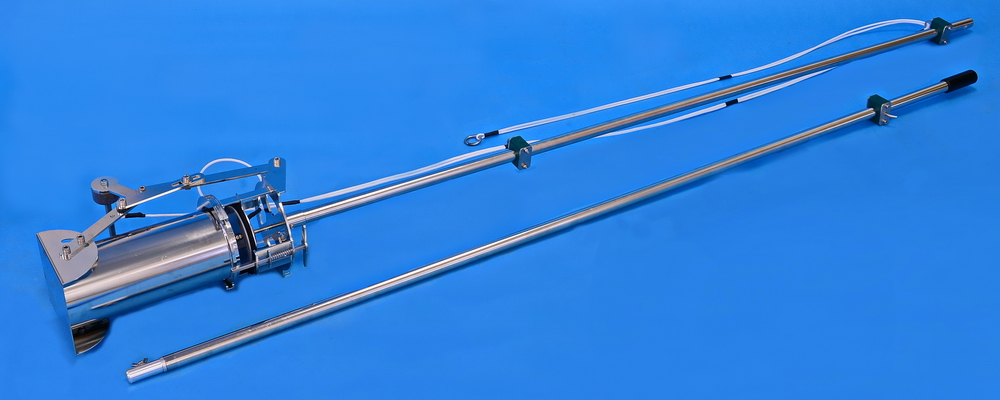

50.820 - Haps with steel tube (to be ordered separately).
- 50.600 - sample tube:
- The corer tube is manufactured from AISI 316 stainless steel, O.D 140/ID 136 mm x 315 mm with a sample area of 145 cm² as standard.
- 50.700 - sample tube:
- Transparent shock-proof polycarbonate OD 133/ID 127 mm x 315 mm with a sample area of 127 cm².
50.600 - Core tube.
Stainless steel
50.700 - Core tube.
Polycarbonate
- Sample ejection (extruder) aggregate:
- Sample ejection aggregate for slicing the sample into smaller parts.
- Insert the sample corer on top and every time you turn the handle 1 revolution, the sample will be released 5 mm, ready for slicing.

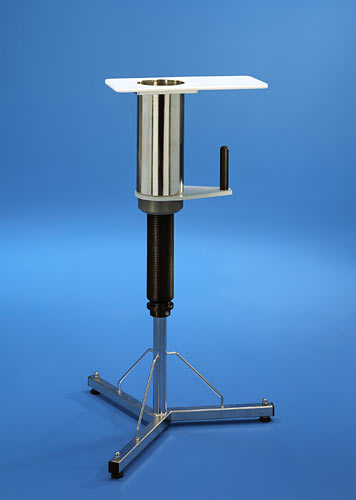

50.800 - Sample ejection aggregate (extruder).
| Description | Ordering No. |
| Complete hand operated Haps rack exclusive corer tube and sample ejection (extruder) aggregate. | 50.820 |
| AISI 316 stainless steel corer tube, sample area 145 cm². O.D 140/ID 136 mm, length 315 mm. | 50.600 |
| Shock-proof Polycarbonate corer tube, sample area 127 cm². OD 133/ID 127 mm, length 315 mm. | 50.700 |
| Sample ejection (extruder) aggregate, weight 10 kg. | 50.800 |
| Dimensions and weights | |
| Length: incl. corer tube | 4,45 m |
| Weight incl. AISI 316 stainless steel corer tube: | 11 kg |
| Weight incl. Polycarbonate tube | 8,2 kg |
