Gravity Corer Ø88,9 mm

13.100 B - Gravity corer, diameter 88,9 mm:

Application:
The 13.100 B gravity corer Ø88,9 mm is designed for taking samples in sandy sediment featuring a detachable core tube with a maximum length of 6 m, (optional). Up to 12 m in soft or muddy sediment. The corer is fully manufactured from AISI 316 stainless steel. Finish: Electro polish.

The top of the corer has 6 steering fins and below a platform with room for a total of 10 lead weights, each 20 kg. (Standard delivery comes with 2 pcs of lead weights).

13.540 - Gravity corer, complete, consists of:
• 1 pc corer body with steering fins and weight platform
• 1 pc corer tube AISI 316 stainless steel. Length 1500 mm
• 2 pcs lead weights, 20 kg each
• 1 pc orange peel closing system
• 1 pc carver
• 1 pc PVC internal liner, grey, 1500 mm
• Weight: 130 kg (with two lead weights)
• Max. weight with 10 pcs lead weights: 290 kg
• Comes with 1 package of spikes 3,4 x 90 mm (13.185)

Extending the length of the 13.100 B gravity Corer:
Each core tube has a length of 1,5 m, by using a coupling device (13.183) you are able to extend the overall tube length of the corer by 1,5 m in each interval.

We recommend the standard size for the core does not exceed 3 m, however in very soft sediment samples of 6 m or up to 12 m are possible. As an alternative, KC Denmark offer a variety of larger gravity corers capable of taking longer samples (13.770 gravity corer Ø121 mm or 13.750 gravity corer Ø140 mm), we recommend 10 lead weights for a 3 m sample or longer on our 13.540 Ø101,6 mm gravity corer.

Corer tube dimensions:
O.D Ø88,9 mm/I.D Ø81 mm x 1500 mm.

Plastic liners (grey PVC).
Dimensions: O.D 75/I.D 71 mm x 1500 mm.

Plastic liners (partially transparent, light blue colour).
Dimensions: O.D 75/I.D 71 mm x 1500 mm.

13.160 - Extension for piston corer functionality:


Optional:
To make the gravity corer function as a piston corer, the extension package 13.560 can be bought, the standard module comes with a 1.5 m wire, please note that if the gravity corer has been extended in length, a new wire kit need to be bought.

The standard package 13.160 consists of:
• 1 pc Kullenberg releaser inclusive Ø4 mm wire
• 1 pc weight station (30 kg) for Kullenberg releaser
• 1 pc cap nut with shackle
• 1 pc piston
• 1 pc stainless steel wire for 1500 mm core tube or additional kit, see below

Below is a picture of the 13.100 B gravity corer with the extension package 13.160 installed with a 1,5 m tube.




13.100 B - Gravity Corer, standard delivery.

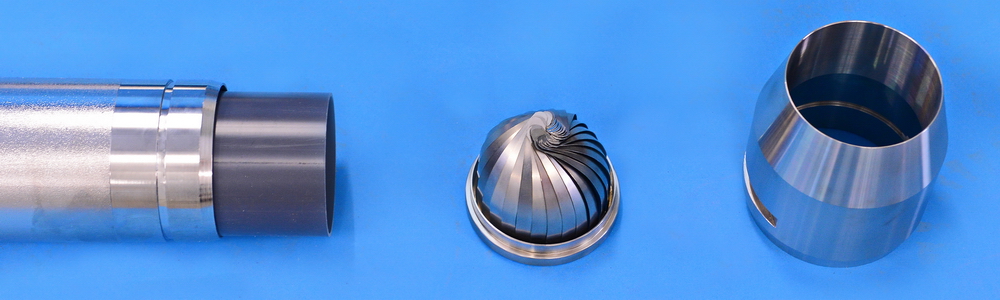

Close-up of the orange peel, liner and carver for the Gravity Corer.

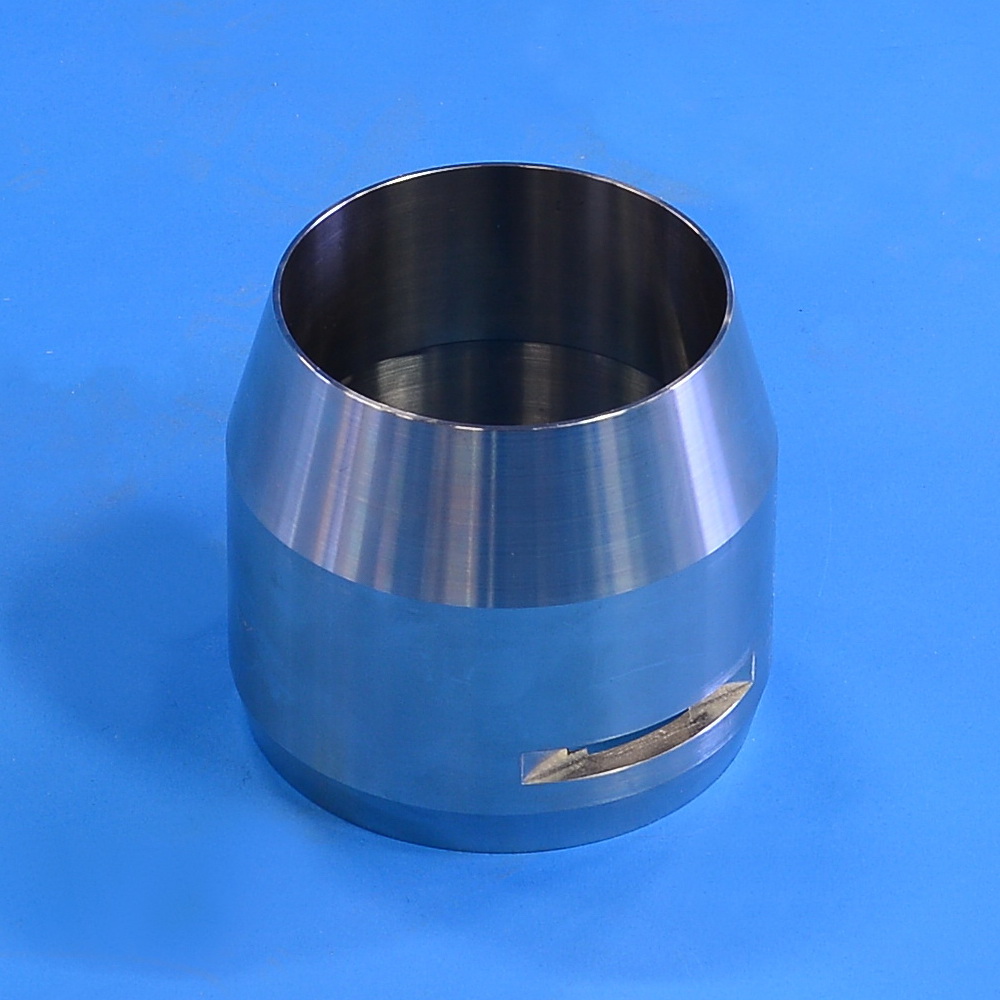

13.144 - Carver, AISI 316 stainless steel.

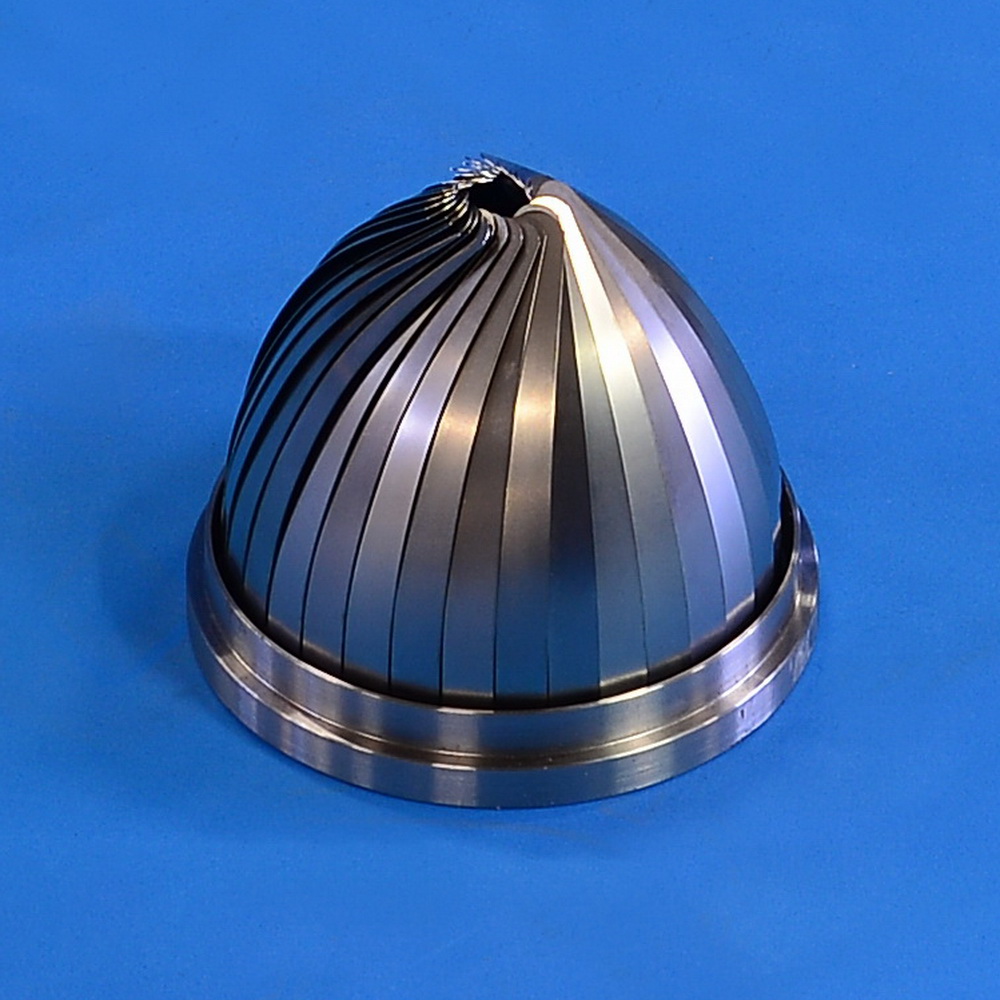

13.147 - Orange peel closing system.


13.169 - Tube detacher.


13.149 - Drum with ratchet device.


13.185 - Spikes is needed to secure the carver.


13.141 - 1,5 m Corer tube for main rack.


13.148 - Piston rod, used for ejecting the sample.


13.160 - Extension for piston corer functionality.


13.104 - 2 trestles holds the sample tube for ejecting the sample.


13.100 B - Gravity Corer Ø88,9 mm, with weight station.

Description Ordering no.
Gravity corer, manufactured from AISI 316 stainless steel, complete consisting of:
1 pc corer body with 6 steering fins and weight platform. Extended body for a higher number of weights, max. 10 pcs.
1 pc corer, AISI 316 stainless steel, Length 1500 mm
2 pcs lead weights, 20 kg each
1 pc orange peel closing system - core catcher
1 pc carver with cutting edge (nose piece)
1 pc PVC internal liner, 1500 mm
Total weight: 130 kg. Max. weight: 290 kg. (For a core tube of 1500 mm and 10 pcs of weights).
13.100 B
Other parts recommended
Corer tube, AISI 316 stainless steel, Ø88,9 x Ø81 x 1500 mm, weight 16,5 kg. 13.141
Extension steel corer tube, AISI 316 stainless steel, Ø88,9 x Ø81 x 1500 mm, weight 15 kg. 13.142
Coupling device for connecting 2 pcs tubes, weight 3 kg. 13.183
Carver with cutting edge, weight 3 kg. 13.144
Internal PVC liner, Ø75 x Ø71 x 1500 mm 13.145
Internal PVC liner, Ø75 x Ø71 x 1500 mm, partially transparent. (Light blue colour). 13.156
Lead weight, 20 kg each 13.546
Orange peel closing system, (core catcher), weight 1 kg. 13.147
Piston rod for ejecting the sample 13.148
Drum with ratchet 13.149
Extension for piston corer function requires:
1 pc Kullenberg releaser inclusive weight station (30 kg) and wire. 1 pc cap nut with shackle, 1 pc wire for 1500 mm tube. (Standard delivery).

Note: The wire length for Kullenberg releaser and for the internal piston must be changed accordingly to the length of the sample tube.

13.160
