1.5 KWatt Winch 1 x 230 V AC

30.065 - Winch_1_No_txt_F_1000_1000_1.jpg
30.064 - Portable winch:

Winch, portable, for small boats and research vessels. Suitable for max. 90 kg load incl. wire.

Ø2 mm: 2000 m
Ø3 mm: 1100 m
Ø4 mm: 600 m

Power supply:
230 V AC/1500 Watts. 12 or 24 V DC via an inverter (optional)

Fully variable by a joy stick.

Digital counter for simultaneously read-out of speed and length of wire. Display has night visibility. Option: Interface for RS-232, RS-485 or USB. More details here. It is possible adding one or more slave displays for simultaneously use on deck and in the wheelhouse as well. Linking the counters requires a 5-conductor cable; to avoid accidental resetting we recommend that on/off and reset function are available on one counter only


30.064 - Portable winch - 1500 W. Shown with deck rack (optional).
Wire guide - operated by hand. Can be disabled for manual guidance of the wire.
Support for a slip ring device, 2-8 connectors, optional.
30.353 - Counter with displays for length and speed.

30.064-2 - Deck rack:
• For 30.064 and 30.065 winch
• Inclusive Ø43 mm bar for the winch
• AISI 316 stainless steel
• Finish: Electro polish
• The winch is lockable every 45°
• Holes for fixation the rack to the deck: 16 pcs of Ø12,5 mm
• Footprint: 68 x 56 cm
• Height: 68 cm (94 cm incl. steel bar)
• Weight: 46 kg

30.064 -2 - Deck rack.

30.064-2 - Universal bracket:
• Supports a stainless steel bar, Ø43 mm
• The winch is fully rotatable, or the winch can be locked every 45°
• Space between steel bar and bulkhead: 355 mm with fully open horizontal arms
• Finish: Electro polish
• Several options make it fit almost anywhere
• Manufactured from 6 and 10 mm AISI 316 stainless steel
• Standard delivery includes the AISI 316 stainless steel bar, Ø43 mm x 120 cm
• Height, max.: 120 cm
• Weight: 23,6 kg

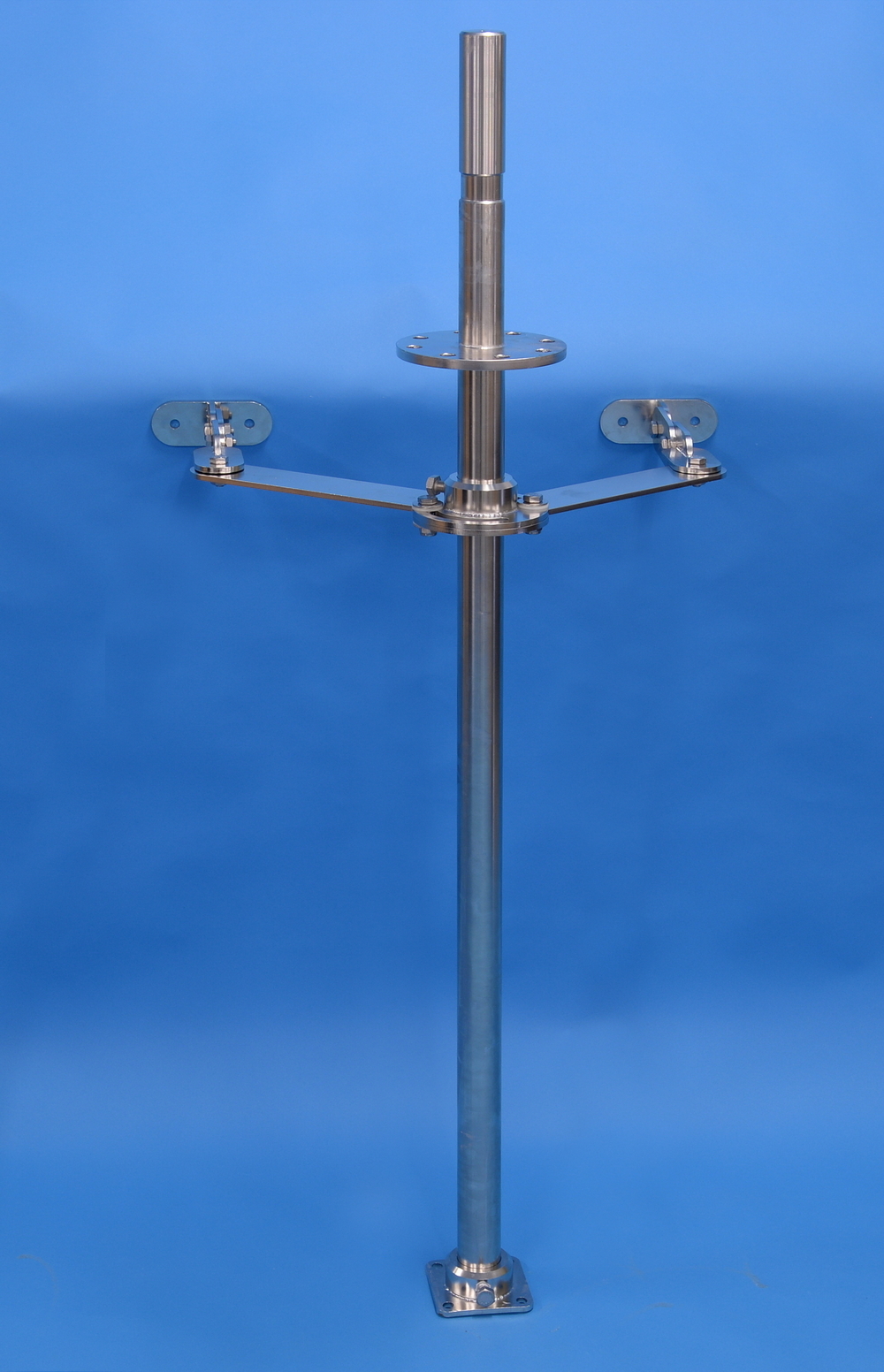

30.064-3 - Universal bracket for mounting of winch.

30.064-4 - Bracket for railing:
• 2 adjustable brackets on a steel bar
• AISI 316 stainless steel
• Vertical bar: Ø40 mm, all other parts: 10 mm thickness
• On ordering please send details for the railing
• Finish: Electro polish
• Dimensions: 62 x 35 cm, height 120 cm
• Weight: 51 kg

30.064-4 - Bracket for railing.

30.064-6 - Rain cover for winch:
• Fits for winches 30.063, 30.064 and 30.065
• Grey PVC, 630 g/m²
• Weight: 2,1 kg

30.064-6 - Rain cover for winch.
General: Ordering no.
Portable winch, 1500 W. Manufactured from AISI 316 stainless steel. Stainless steel meter wheel with electronic sensors. 30.064
Power supply: 230 VAC/1500 Watts. 3 x 400 or 3 x 440 V on request.
12 or 24 VDC via an inverter (optional)
Emergency brakes: 2 pcs. located at the winch + the control box.
Material: AISI 316 stainless steel
Drum: Inner diameter: 204 mm
Outer diameter: 340mm
Width: 210 mm.
Drum speed: 66 rev/min
Drum capacity: 2000 m of 2 mm wire or 1100 m of 3 mm wire.
Wire speed: 42 m/min. (approx.)
Angle worm gear, self locking: Bonfiglioli type A202, ratio 21,2:1
Brake system: Disc brake made of AISI 316 stainless steel,
Turning radius: 1,35 m approx.
Weight, standard: 180 kg exclusive wire
