3.0 KWatt Winch 3 x 400 V AC

32.720 - Winch, 3 kW:



Electrical winch

Power:
3 kW/4 HP.

Power supply:
3 x 400 V AC/50 Hz.


Other voltages on request.


The front is covered by a transparent protection shield (Polycarbonate, 6 mm).



Electrical winch


Wire guide system:

Mechanical wire guide.



Wire guide system Mechanical wire guide


Frequency converter:

The speed of the winch is fully variable due to the frequency converter.

Counter for length of wire:

• Max. capacity of 99.999,9 m
• Resolution: 0,1 m
• Night visibility
• Power supply: 10-24 V AC or DC
• Power consumption: 4 W
• Optional: Interface for RS-232, RS-485 or USB
• Weight: 4 kg



Frequency converter:


Frequency converter:

The speed of the winch is fully variable due to the frequency converter.

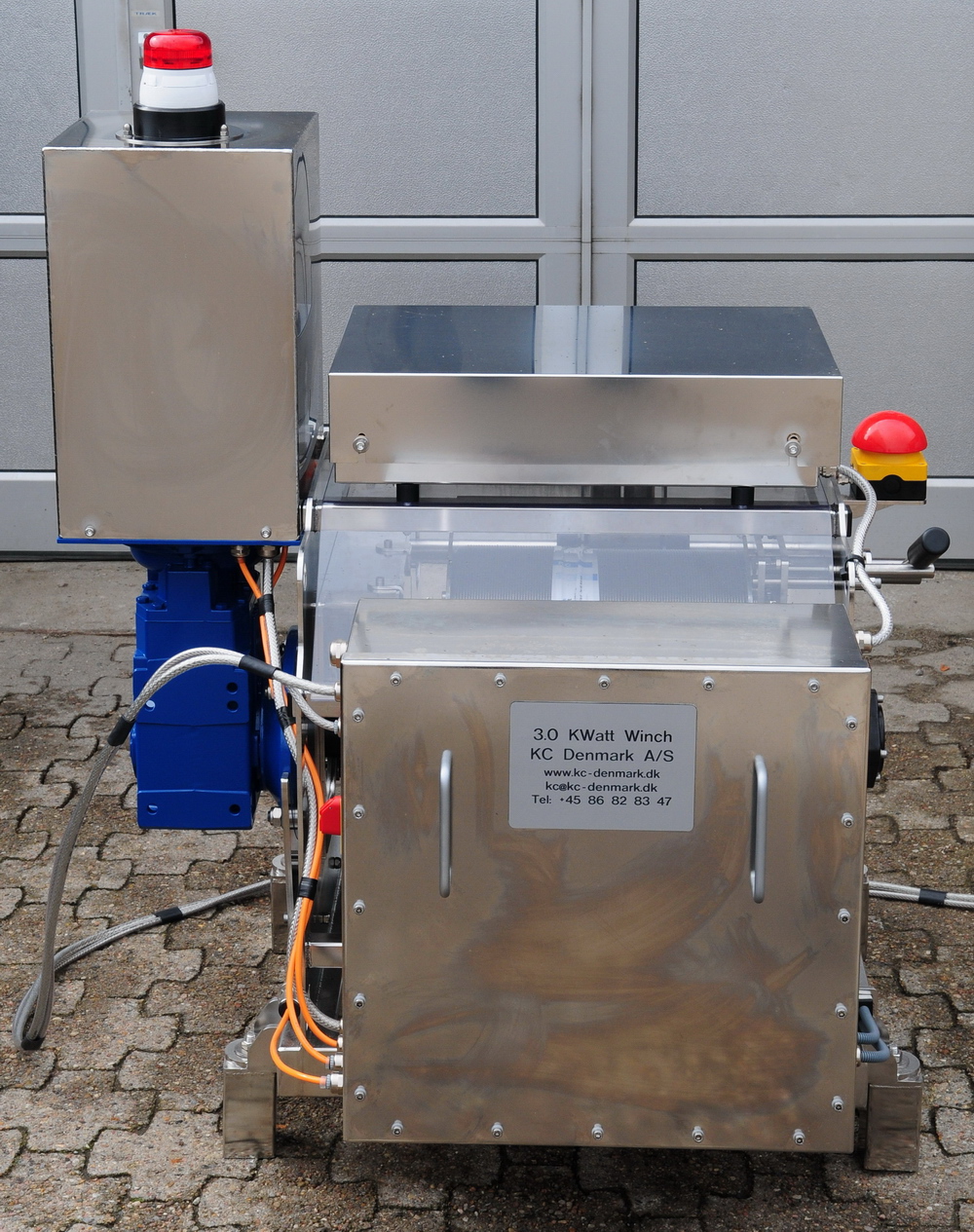

Winch from back


Winch from left


Winch from right

General: SPECIFICATIONS TO BE UPDATED
CTD Winch, 3 kW, with adjustable speed. All materials:
AISI 316 stainless steel
Electrical
Power supply: 3 x 400 V AC, 50 Hz
Optional:
3 x 500 V AC/60 Hz
Speed regulation: Fully variable by a joy stick. Regulated by a frequency converter, ABB
Manoeuvre box: AISI 316 stainless steel, 3 mm and ABS plastic.
Enclosure rating: IP 65
Control box: AISI 316 stainless steel, 2 mm
Enclosure rating: IP 65
Emergency brakes: 3 pcs., located at each end of winch + the control box.
Motor
Main motor: Bonfiglioli 3 kW, with electro magnetic brake. 3 x 400 V AC/50 Hz. Rev.: 1440/min
Mechanical:
Material: AISI 316 stainless steel
Main rack: Square tube, AISI 316 stainless steel
Side plates: AISI 316 stainless steel, 8 mm. Reinforced by adding tubes of
60 x 40 x 3 mm (AISI 304).
Drum and disc brake: AISI 316 stainless steel, 8 mm.
Finish: Electro polish.
Drum: Outer diameter: mm
Inner diameter: mm (standard delivery).
Drum rev: 0 - 43 rev./min. Adjustable.
Drum capacity:
Wire speed: Approx. 1,0 m/sec.
Angle gearbox: Bonfiglioli type
Tractive force: Inner layer:
Brake system: 1. Disc brake made of AISI 316 stainless steel, 8 mm
2. Automatic motor brake
Ball bearings: AISI 304 stainless steel flange ball bearings, 3 pcs. Ø30 mm.
Protection shield: Transparent polycarbonate, 6 mm
Weight, standard, without wire: 300 kg
Dimensions, overall: L x W x H: 118 x 102 x 115 cm
