Water sampler - Combi system

24.010 - Water sampler
24.010/24.011 - Water sampler:

Application:
The water sampler is a versatile telescopic sampling system with exchangeable sample container holders. This is an ideal tool for safely sampling in open water such as pools, sewers, streams and reservoirs. The tools are attached to the sampler pole by an easy to use snap-in joint.

Combi system:
The telescopic handle supports a variety of exchangeable accessories, such as:
19.160 - Plant rake
24.020 - Water sampler
for glass and plastic bottles






24.010 - Water sampler with telescopic handle.


24.010/24.011 - Water sampler. The handle can be extended in 26-cm steps.


19.170/19.171 - Telescopic handle:
The telescopic handle is optimally suited for convenient work to 5 m depth. Thanks to the snap closure the handle can be effortlessly extended in 26-cm steps from 160 cm to 290 cm length (model 19.170) or 210 to 390 cm for model 19.171. This allows pleasant work adjusted to the work situation and body height. The handle is made of light and stable aluminium. The oval shaping provides more stability and no twisting during adjusting. To avoid injuries a damper prevents unintentional retraction of the telescopic handle. The fastening screw for securing the accessories is attached in such a manner that it cannot be lost.



19.170 and 19.171 - The telescopic shaft for the Combi System. 2 lengths are available.


Acrylic beaker with spout:
24.100 - contents 250 ml, requires bracket 24.110
•  Diameter: Ø60/Ø52 mm
•  Height: 140 mm

24.101 - contents 750 ml, requires bracket 24.111
•  Diameter: Ø80/Ø72 mm
•  Height: 195 mm



Brackets for acrylic beakers:
• 24.110 - Stainless steel bracket for beaker 24.100
• 24.111 - Stainless steel bracket for beaker 24.101

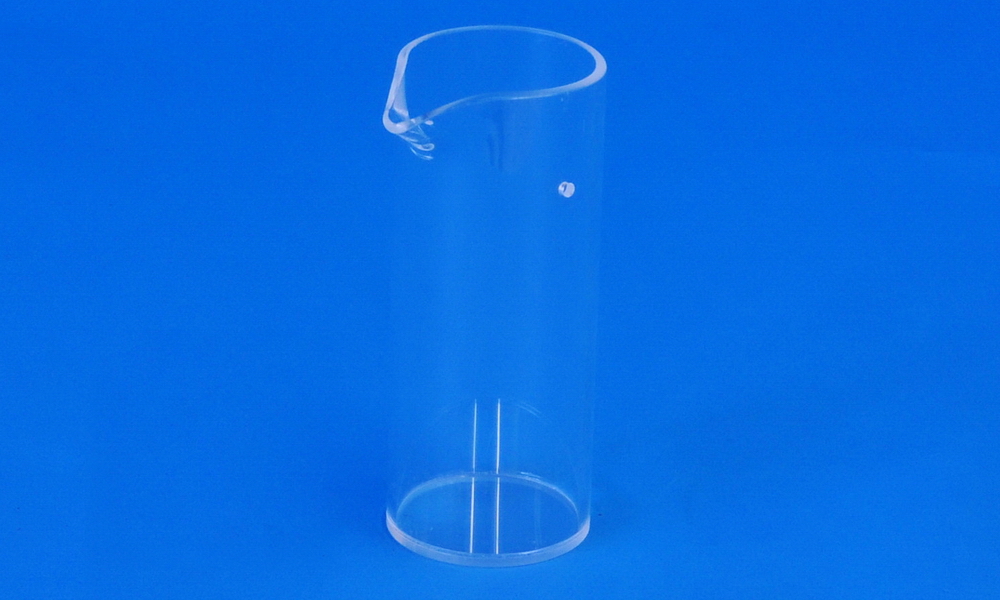

24.100/24.101 - Acrylic beaker with contents of 250 or 750 ml.


24.110/24.111 - Bracket for the acrylic beaker.


19.175 - Adapter:
• For mounting of accessories
• Support items from the old 19.150 and newer 24.000 systems
• AISI 316 stainless steel



19.175 - Adapter.
