Van Veen Grab 1000 cm²

Stor billed

Application:
Sampler for collecting bottom sediments for biological, hydrological and environmental studies.

General:
The Van Veen grab is based on the Van Veen design. The Van Veen grab is made of AISI 316 stainless steel and the surface is electro polished. The grab itself is manufactured from 3 mm plate (250 cm²), 4 mm for 1000 cm² and 8 mm for a 2000 cm².

Model shown with 4 pcs lead weights (12.205)

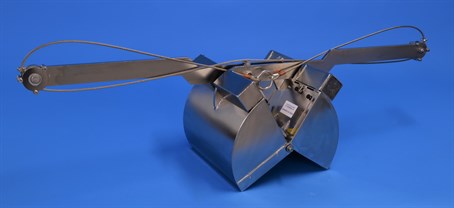

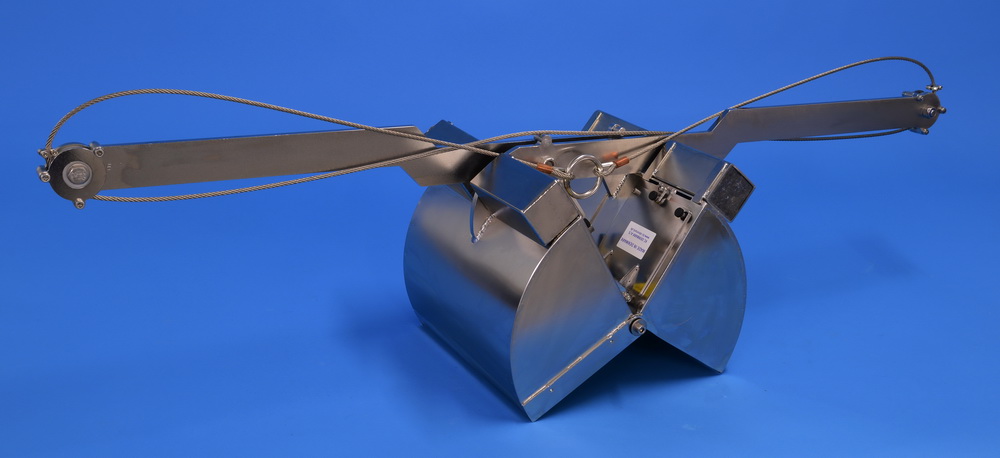

12.210 - Van Veen Grab 1000 cm², shown with lead weights (optional).

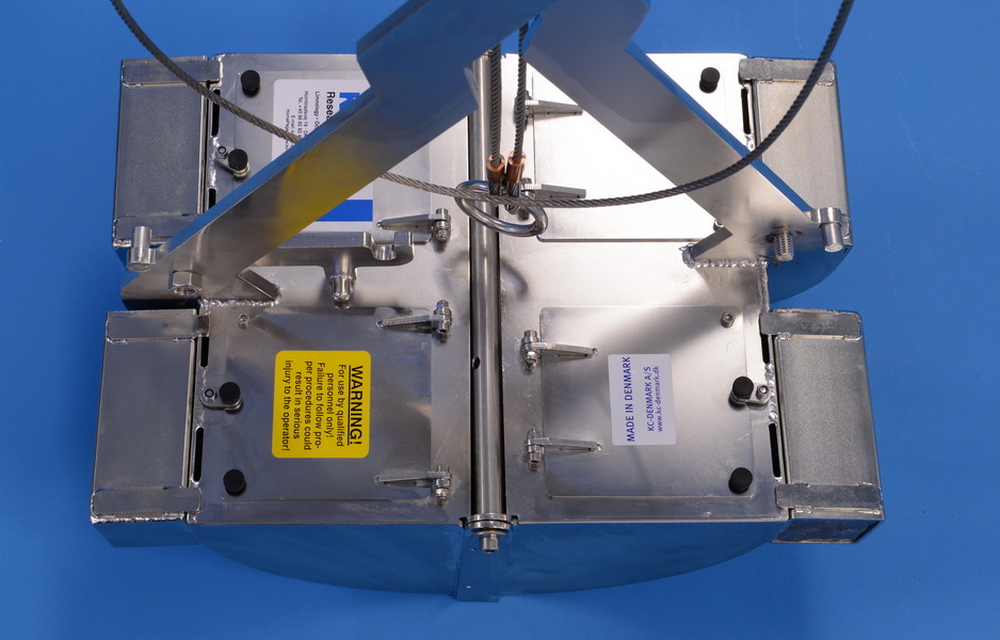

12.210 - Van Veen Grab 1000 cm², seen from the top. Shown with lead weights (optional).


Sizes:
12.110 - 250 cm², (0,025 m²) - 3,14 L.
12.210 - 1000 cm², (0,1 m²) - 15 L.
12.310 - 2000 cm², (0,2 m²) - 50 L.
12.410 - 2500 cm², (0,25 m²) - 82 L.

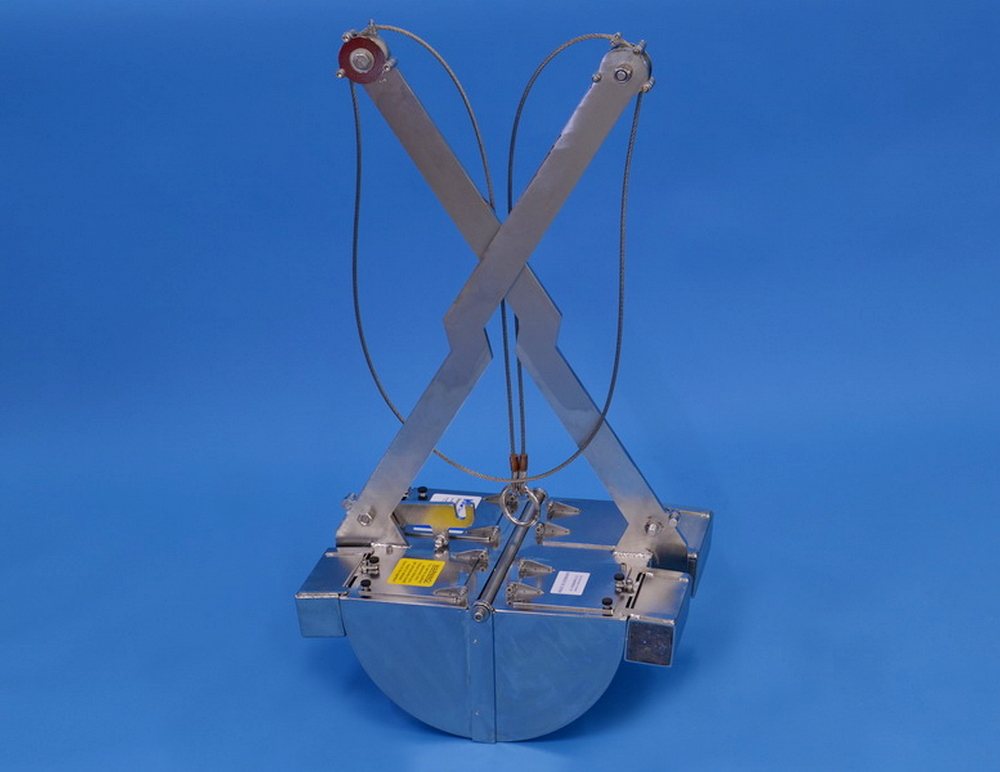

12.210 - Van Veen Grab 1000 cm². Closed position. Shown with lead weights (optional).


12.205 Lead weights 5 kg:

Our 12.205 lead weights are used for the Van Veen grabs 1000 cm², each having a weight of 5 kg, and a maximum of 4 lead weights can be used on the grab.

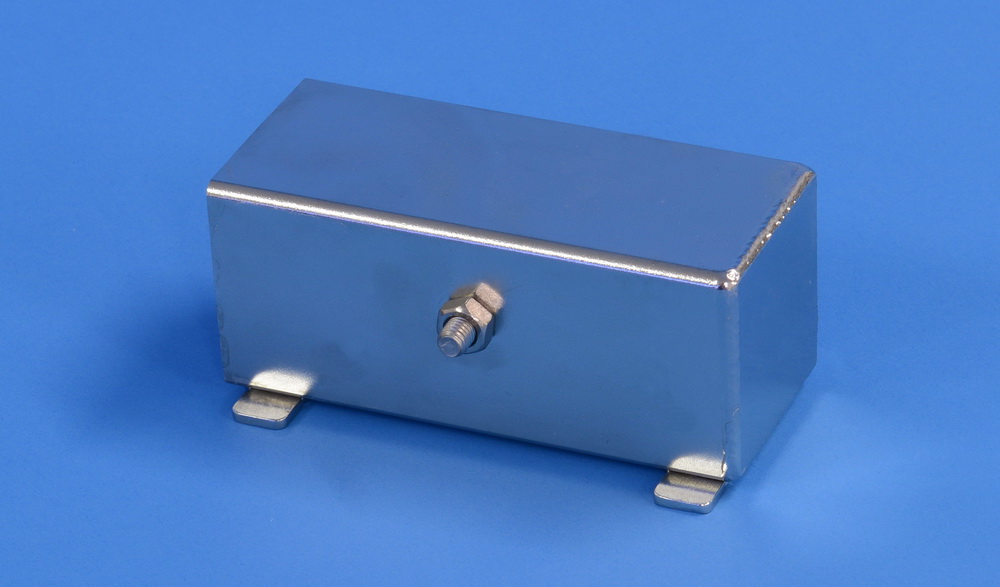

12.205 - Lead weight 5 kg.


12.211 Van Veen Grab 1000 cm² special version:

On request KC Denmark A/S also manufactures the 12.210 and 12.400 model matching Norwegian ISO standard (lids with stainless steel mesh and rubber mats to reduce the shock wave).

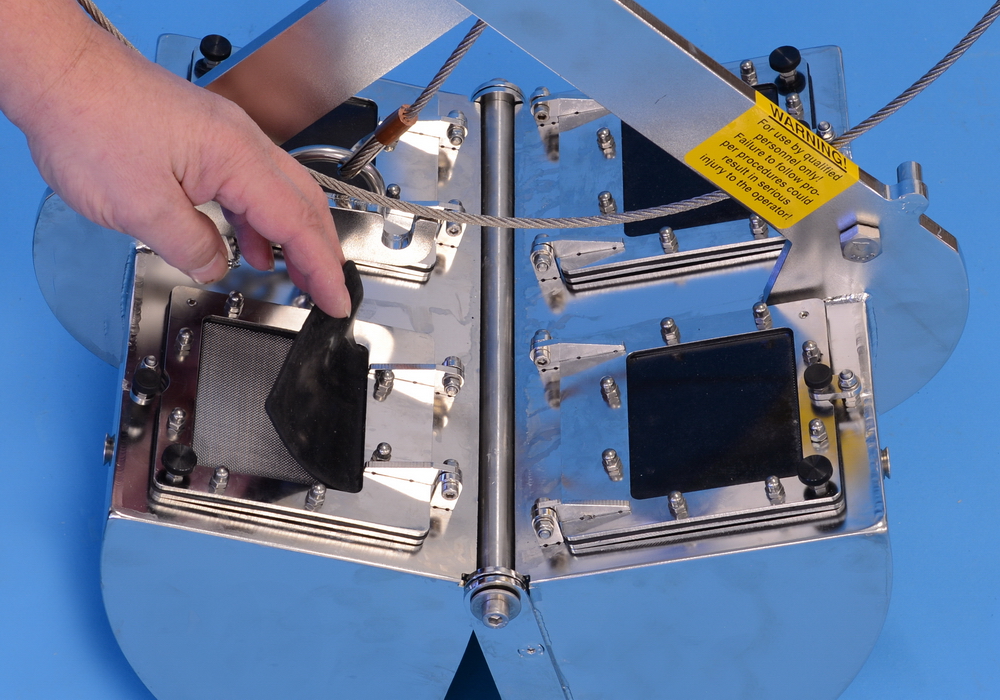

12.211 - Van Veen Grab 1000 cm², special version with steel mesh and rubber flaps.

Ordering No. 12.210/12.211
Sample area: 1000 cm² - 4 lids
Sample: 15 L
Dimensions, L x W x H:
136 x 36 x 35 cm
Lids: 4 lids, 120 x 120 mm each
Materials: AISI 316 stainless steel. The grab = 4 mm
Net weight: 25 kg
Operation weight: 25 kg. Max. net. weight by adding lead weights: 45 kg (optional)
Optional lead weights:

Max. 20 kg (4 x 5 kg - No. 12.205)

Shipping weight inclusive pallet, without optional weights: 75 kg
Shipping weight inclusive pallet, inclusive optional weights (20 kg): 95 kg
Pallet: L x W x H: 120 x 80 x 56 cm.
