Frame for 2 Van Veen grabs

Frame for 2 Van Veen grabs
12.210 FR - Frame for 2 Van Veen grabs

Dual release frame

  • The dual‑grab configuration enables simultaneous sampling at a single site, delivering paired samples for chemical and biological analysis in one deployment
  • Supports 2 pcs of 1000 cm² Van Veen grabs with a synchronized release mechanism
  • Support for 5 extra lead weights 10 kg each (50.400)
  • Supplied with bolts, washers, etc., for mounting two grabs
  • L x W x H: 89 x 72 x 9 cm
  • Weight: 20 kg
  • Weight with 2 grabs and all available lead weights: 160 kg

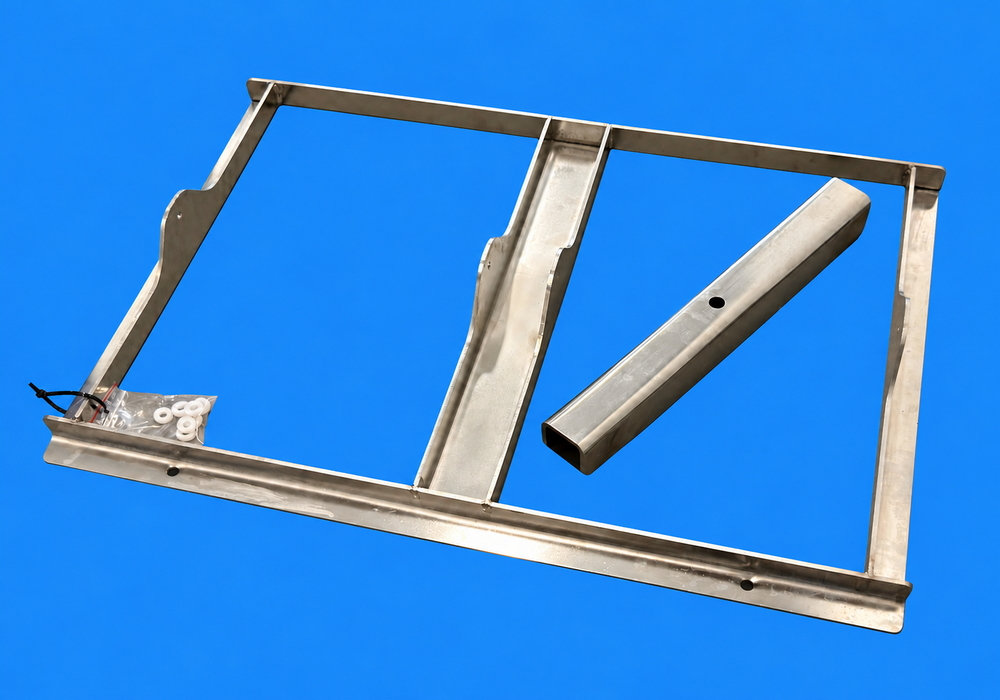

12.210 FR – Frame for mounting two 1000 cm² Van Veen grabs for simultaneous release.

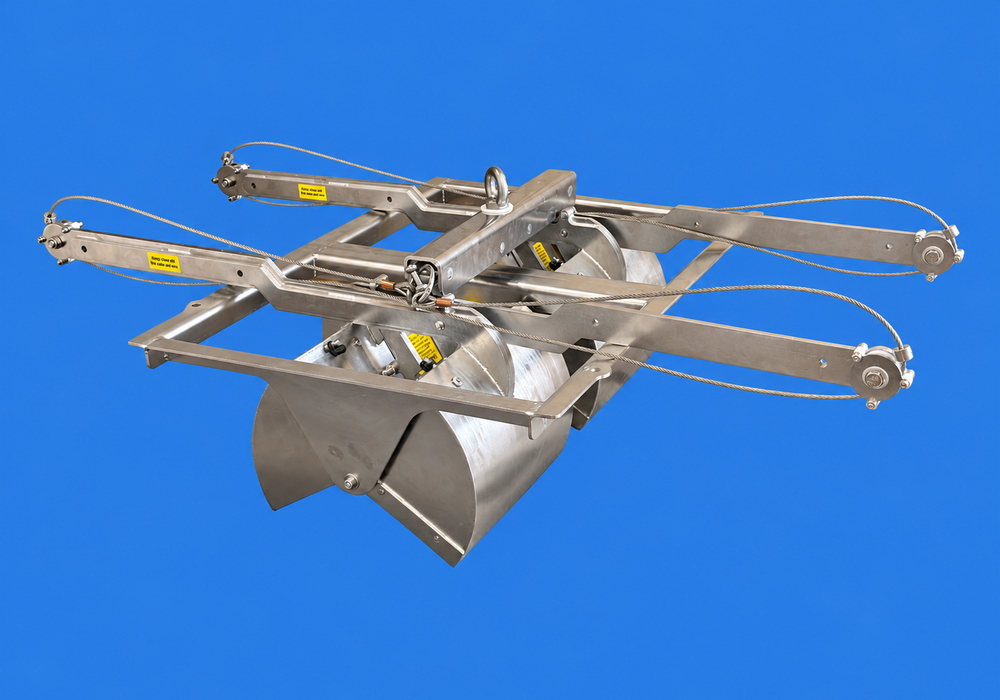

12.210 FR - Frame with 2 Van Veen grabs

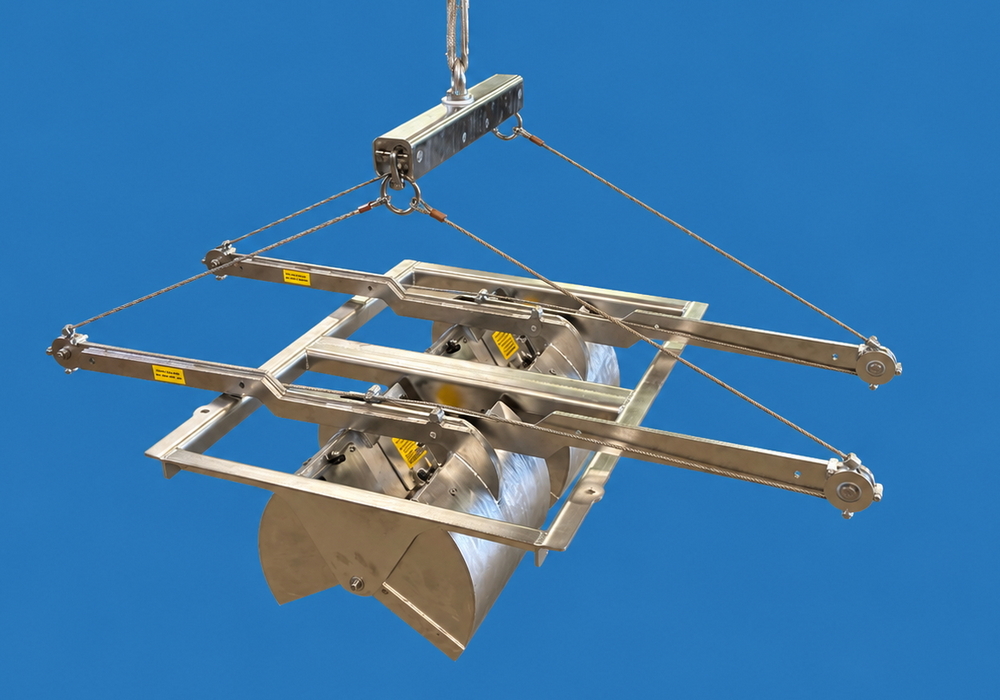

12.100 FR frame with 2 Van Veen grabs ready for deployment.


50.400 - Lead weight 10 kg.
