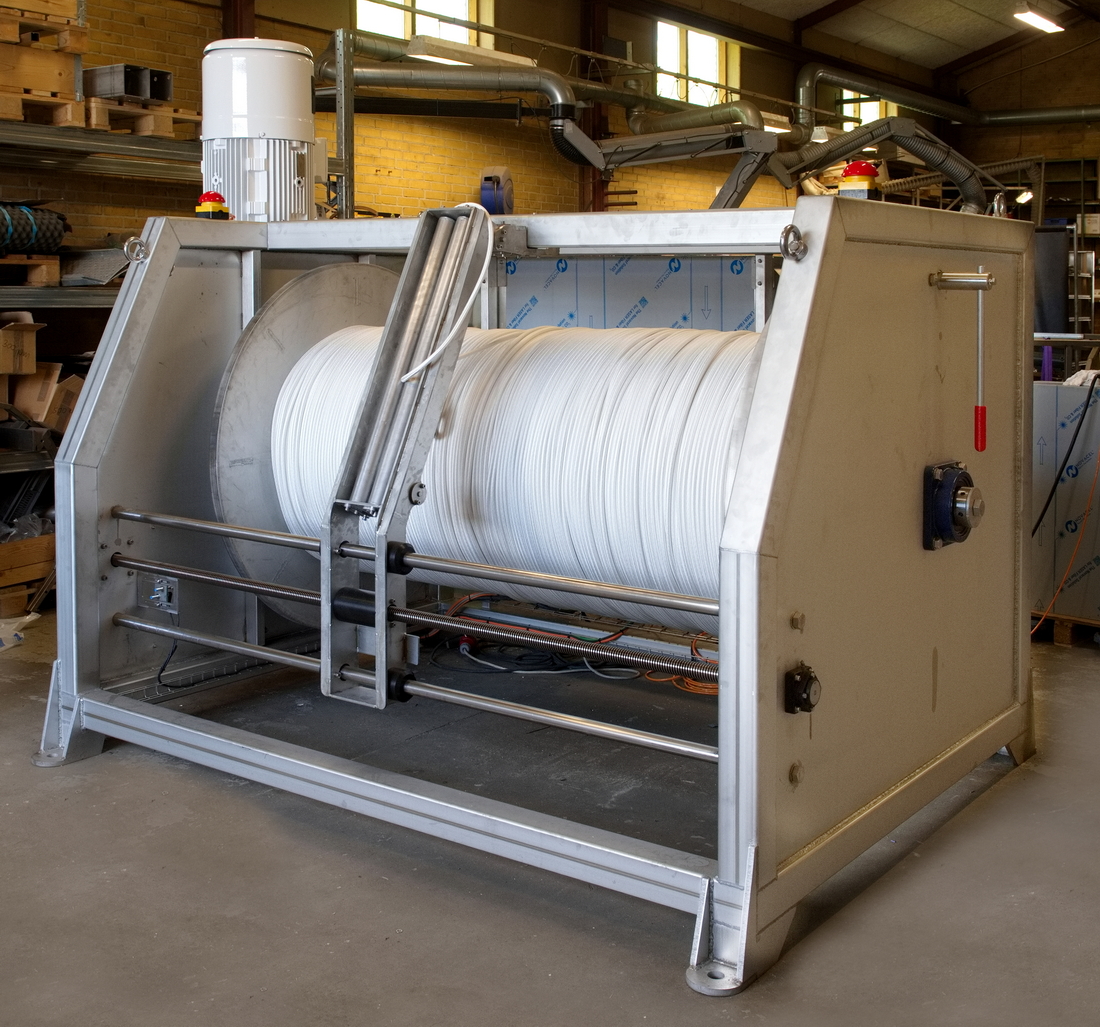

750.370 - Winch, 37 kW, 3 x 480 V AC. Shown with 6000 m of Dyneema line. (To be ordered separately).

General:
CTD winch for conductor cable 19,7 mm. By using a wider drum, the capacity can be increased. Inner diameter of drum: 780 mm. Outer diameter max. 1000 mm.

•    Dimensions: 319 x 243 cm. Height 256 cm.
•    Drum dimensions: Ø120 cm × 190 cm
•    Cable capacity: approx. 6,100 m (Ø15 mm)
•    The lifting capacity of the winch: 2,200 kg.

Power requirements:
•    480 V / 3-phase - 80/100 A
•    60 Hz

The winch has an inner drum diameter (first layer) of Ø40 cm and an outer diameter (fully spooled) of Ø115 cm, which results in the following operating speeds:
•    Ø40 cm: 0,56 m/s
•    Ø75 cm: 1,05 m/s
•    Ø115 cm: 1,62 m/s

Variable speed:
The speed is fully adjustable and regulated by a frequency converter (37 kW). All parts are mounted in a control box with emergency stop and speed regulation, etc.

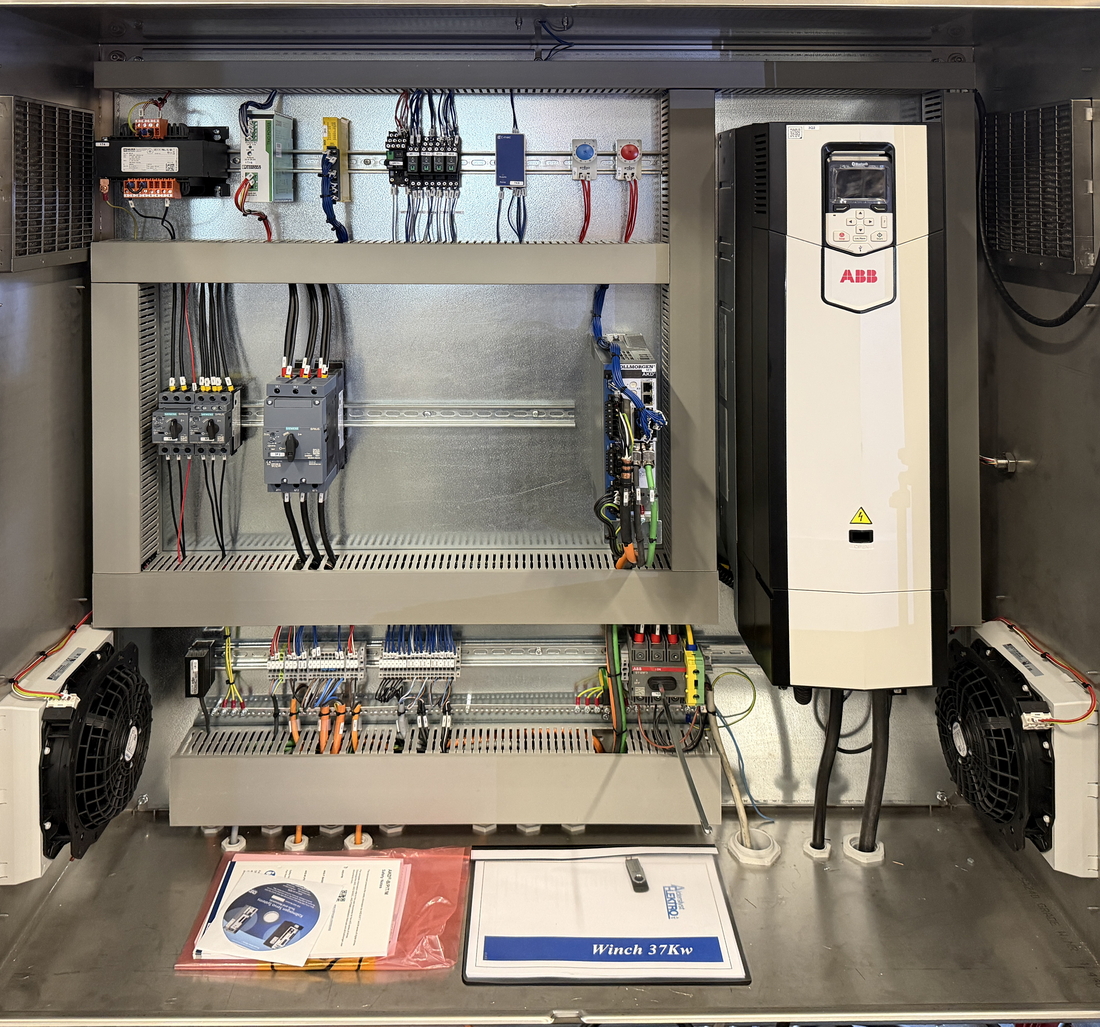

Control box:
The control box is manufactured from AISI 316 stainless steel with on/off switches, indicator lamps, emergency-stop, and joystick. Built-in heating element controlled by a thermostat to prevent condensate water and to allow arctic use to -40 °C. Enclosure rating: IP 65.

Gear box:
Bonfiglioli angle-gear. Painting: 2 primary colours, 1 RAL 7035 and 1 transparent lacquer (NATO norm).

Slip ring device:
The winch can be equipped with an optional slip ring device (2-8 conductors).

Cable guide:
Automatic cable guide.

Arctic use:
As option, the winch gear motor can be delivered with heating elements and thermostat to ensure an error free operation down to -40 °C. Price on request.
