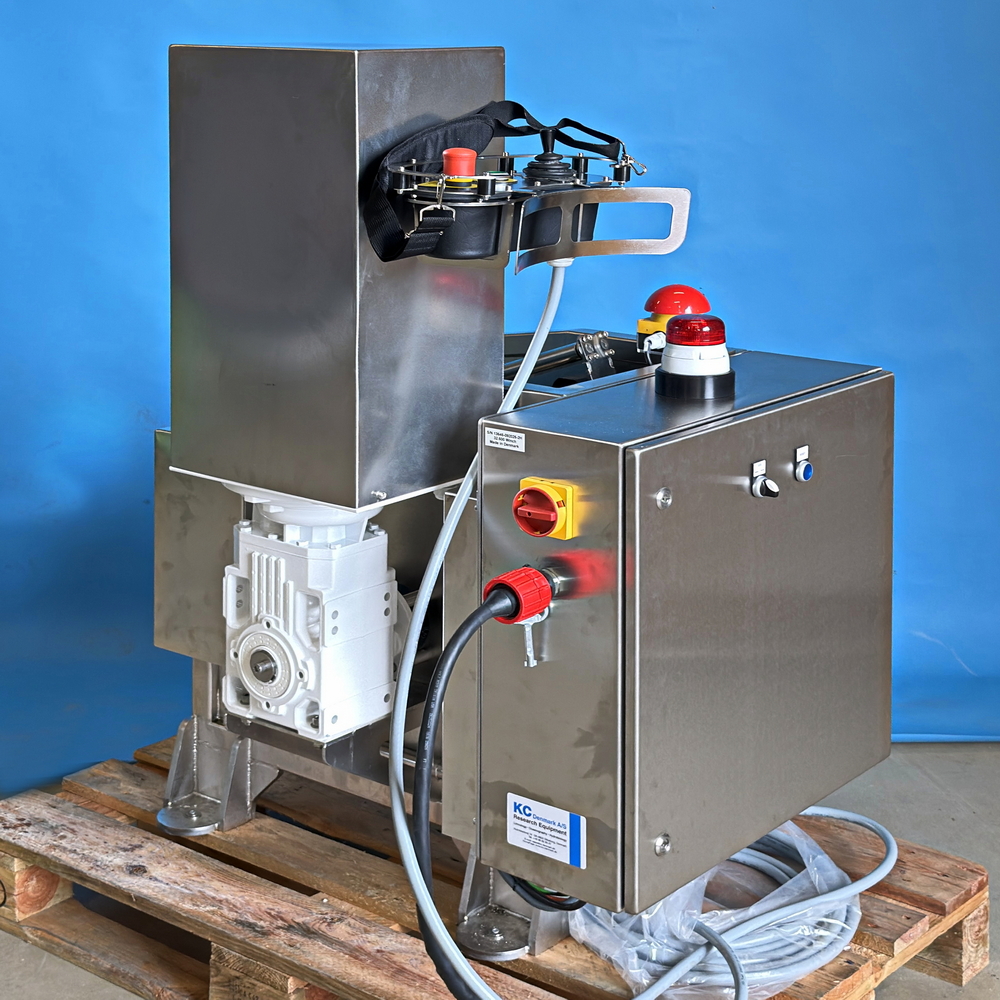

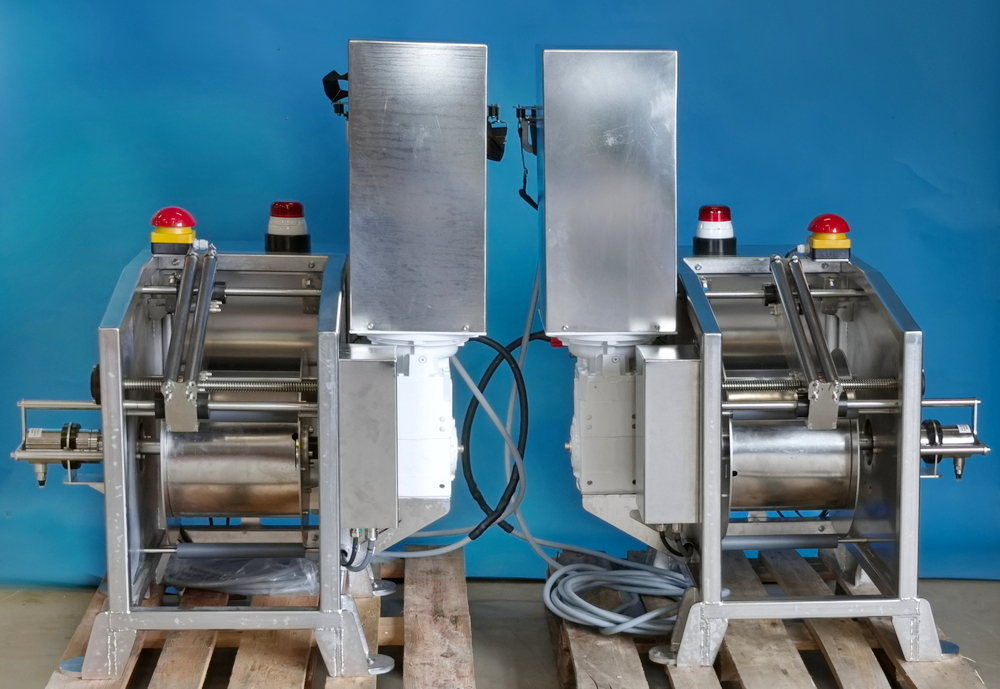

700.022 - 2,2 kWatt electrical winch - available as a mirror-image version.

General:
Small electrical winch.

•    Dimensions: Footprint: 91 x 93 cm, height 127 cm.
•    Drum dimensions: Ø43 cm × 26 cm
•    Cable capacity: approx. 150 m of 6,53 mm wire.
•    The lifting capacity:  75 kg inclusive the weigt of the wire.
•    Speed: 0-1 m/sec.

Power requirements:
•    230 V/single phase
•    50 Hz
•    2,2 kWatt

Variable speed:

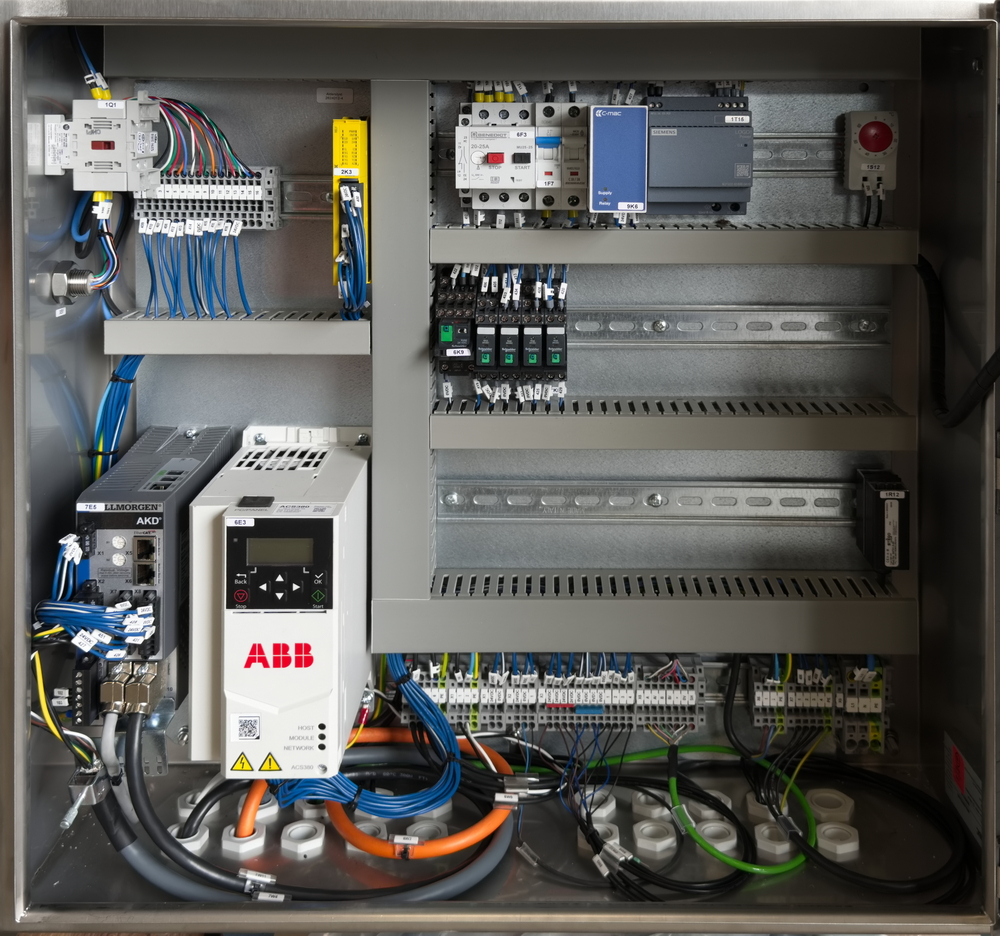

The speed is fully adjustable and regulated by a frequency converter (2,2 kW). All parts are mounted in a control box with emergency stop and speed regulation, etc.

Remote Control box:
The remote control box is equippedd with an emergency-stop function and a joystick for controlling the speed and wire direction.

Gear box:
Bonfiglioli angle-gear. Painting: 2 primary colours, 1 RAL 7035 and 1 transparent lacquer (NATO norm).

Slip ring device:
The winch can be equipped with an optional slip ring device
(2-8 conductors).

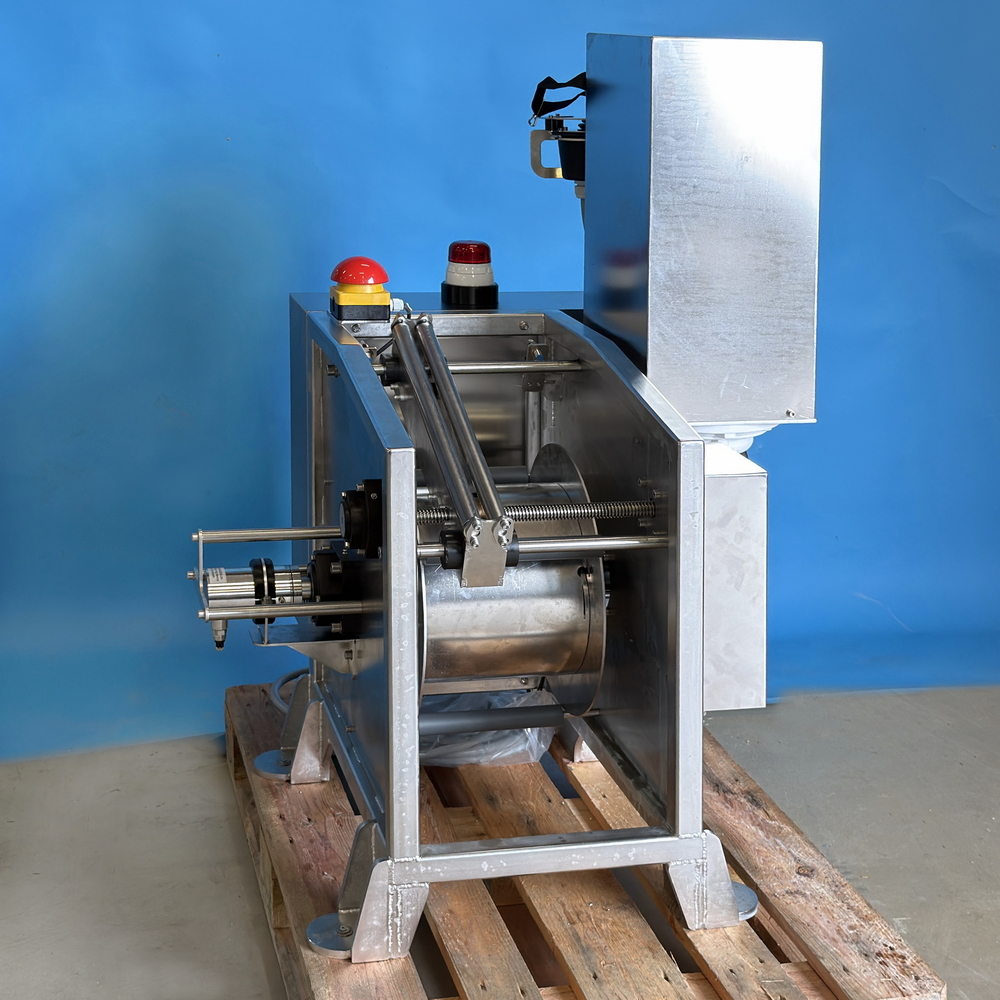

Cable guide:
Automatic cable guide. The jog control can be used during spooling to make minor adjustments to the winding pattern.

Arctic use:
As an option, the winch gear motor can be supplied with heating elements and a thermostat to ensure error-free operation down to −40 °C. Price on request.
