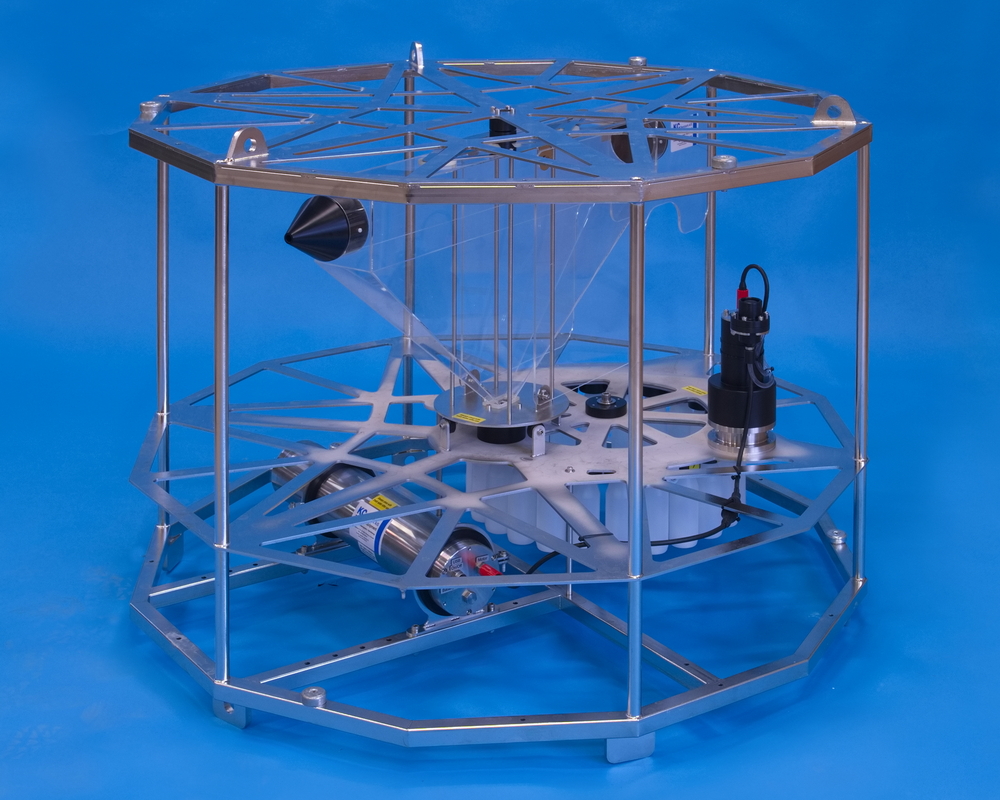

28.590 - Autonomous sediment trap for horizontal flow:

Application:
Autonomous sediment sampling for horizontal flow. The standard battery and electronics come with a sleep mode functionality allowing deployment up to 12 months. For longer immersions we can provide larger batteries.

The integrated control fin keeps the sediment trap aligned with the direction of the water flow.

Specifications:

• Max. depth: 6000 m
• Larger depth on request
• 24 bottles, each 250 ml
• Rack: AISI 316 stainless steel
• Finish: Electro polish
• The chamber is made of 3 mm acrylic plate.
• Inner diameter of the black POM in/outlets: 16 mm
• Length, horizontal chamber: 900 mm
• Footprint: 130 x 130 cm
• Height: 98 cm
• Weight: 145 kg

Time lapsed trigger:
Programmable timer for individual release of a maximum of 24 samples.The individual delay between every sample is fully programmable.
